Special conveyor

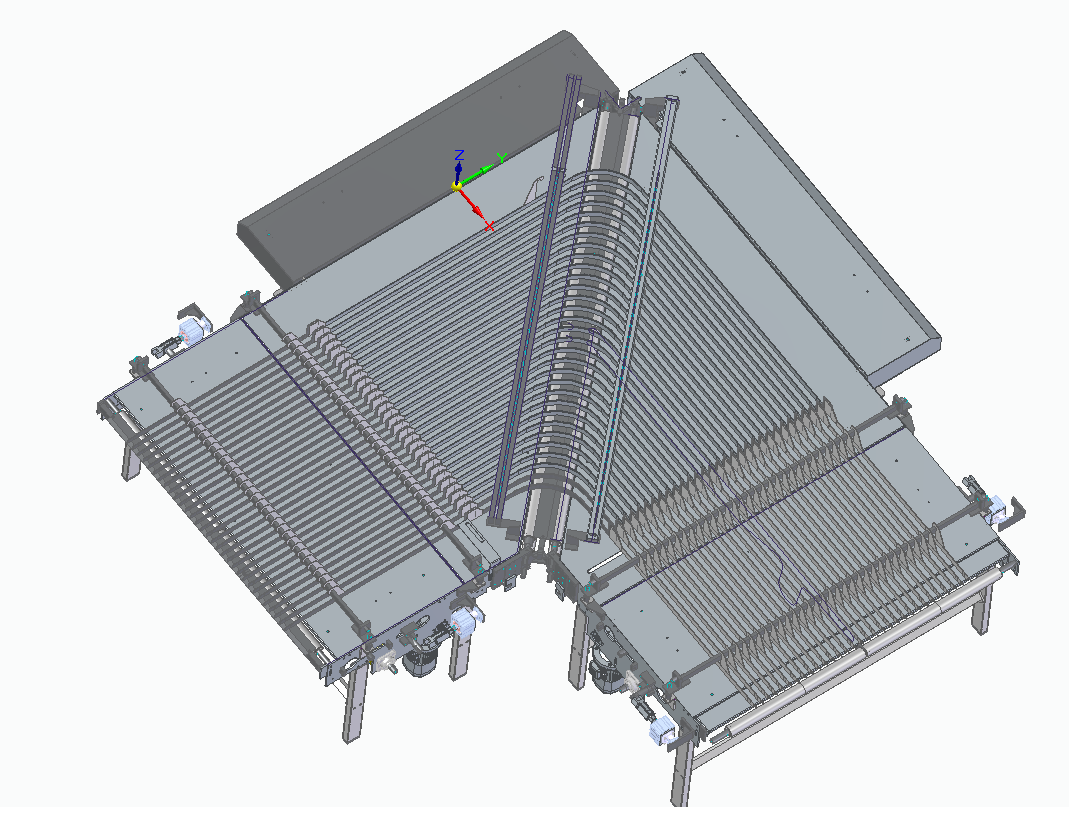

Angular belt conveyor
We are able to provide our clients with a quality range of 90 Degree Curve Conveyor System PU Belt, which is highly demanded by the clients. These products are used to change the direction of the conveyor line from 90 degrees to the left or right, while keeping the pieces oriented in the same direction relative to the conveyor bed.
| Belt Width | 150mm to 1200mm |
| Body Material | MS painted |
| Turn Angle | 30 to 90 deg |
| Belt Material | Polyurethane |
| Speed | 0 to 45 meter/min |
Merging conveyor (45 degree conv.)
We are able to provide our clients with a quality range of Merging Conveyor System PU Belt. These products are used to transfer product 90 degree in stacked biscuit application. These product also used where product arrives in row form & required them to make single lane / two lane according to line capacity
Normally this kind of system used for small chocolate / Cup cake / Cookie
| Belt Width | 150mm to 1500mm |
| Body Material | MS painted |
| Turn Angle | 30, 45 deg |
| Belt Material | Polyurethane |
| Speed | 0 to 45 meter/min |

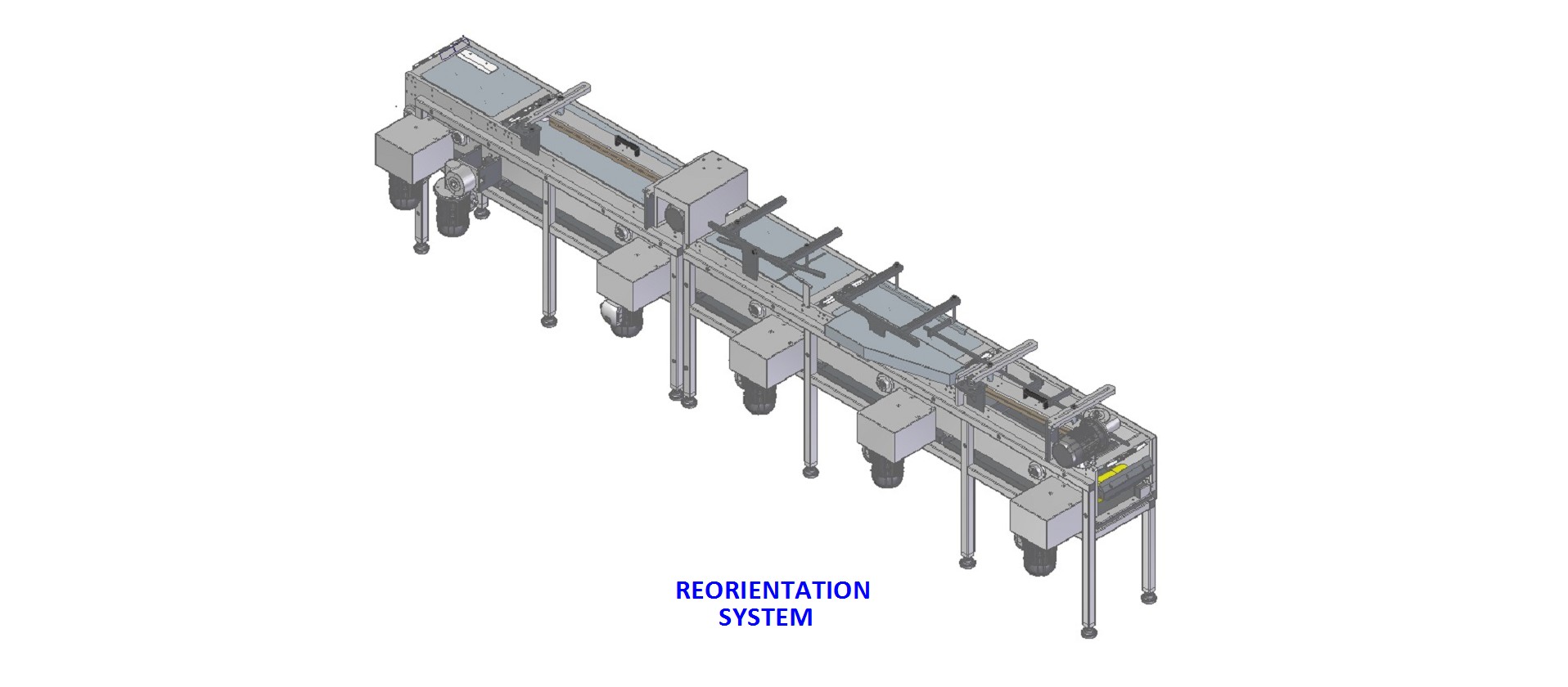

Re-orientation conveyor system
This type of conveying system is useful to Reorient product. Ie. This system receive product Long side leading & orient them by turning them to short side leading Normally this kind of system used for chocolate / chocolate coated wafer / noodle packing machine.

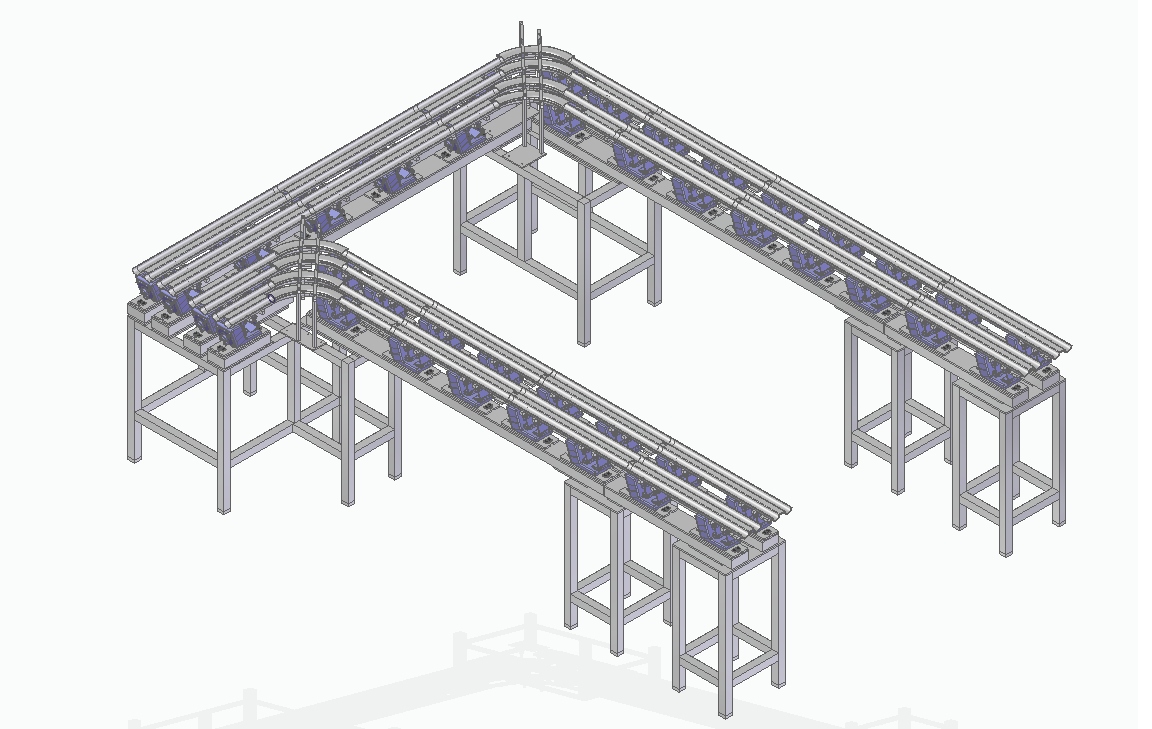

Race track conveyor system
This type of system is useful to collate & Segregate primary packed product & transfer them in to secondary packing machine. Normally this kind of system used for secondary packing of soap / noodle etc.
Vibratory Feeding System
This type of system is useful to transfer stacked dry biscuits / cream biscuits pressure less to primary packing machine / creamer.
