Chocolate Wrapping Machines

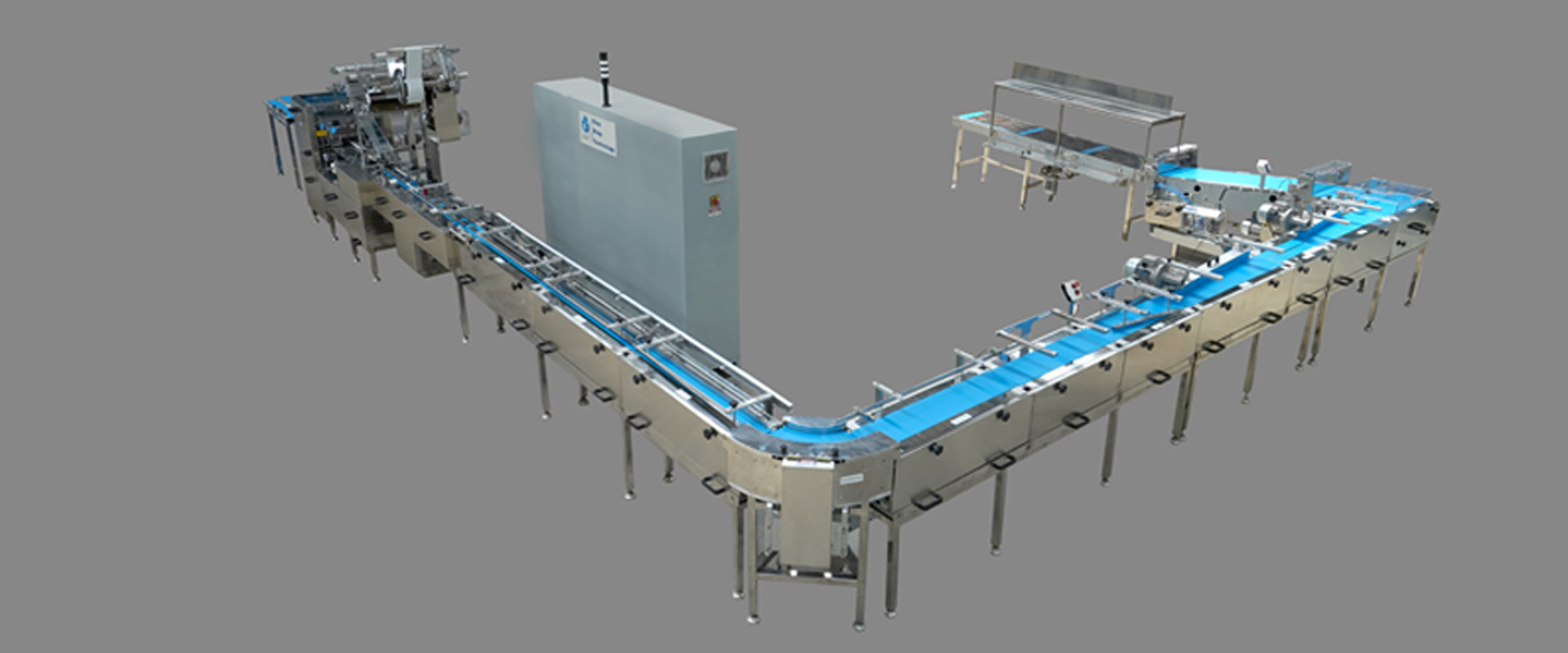

![Service](../content/media/service/chocolate-wafer-packing/chocolate-wrapping-machines.jpg)
This model suitable to pack Moulded bars, Enrobed bar, Chocolate coated wafers and also Cereal bars. Machine suitable to wrap with heat seal and also with cold seal laminate material.
Depending on machine model, machine speed ranging from 100 bars to 600 bars per minute.

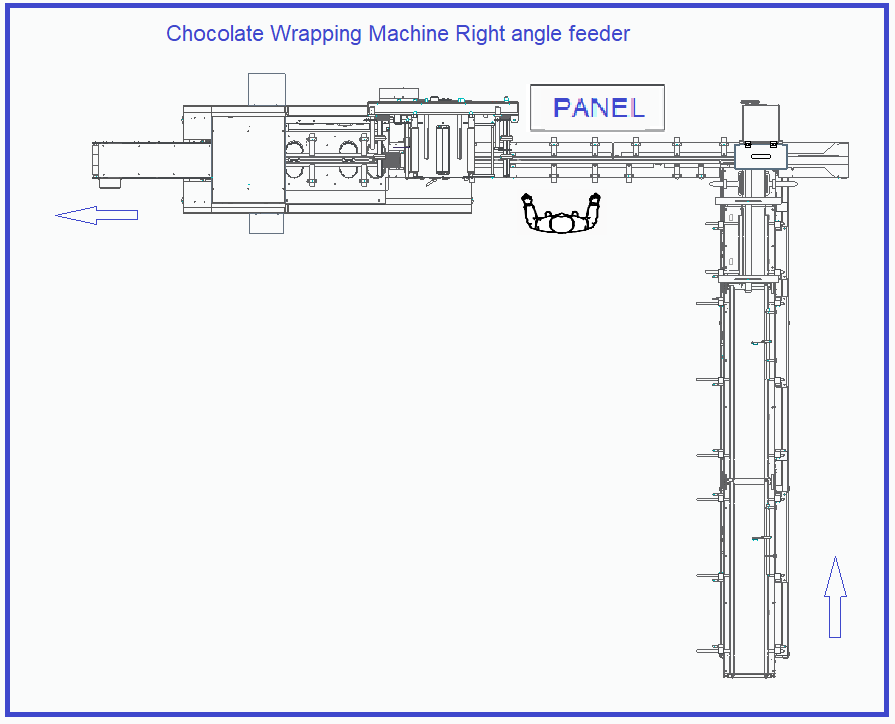

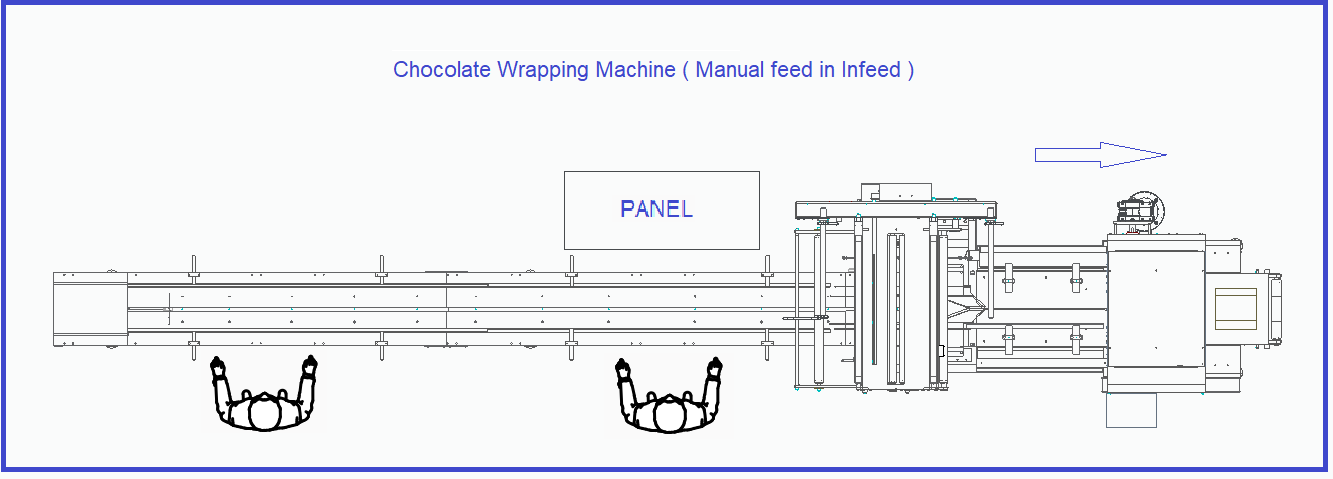

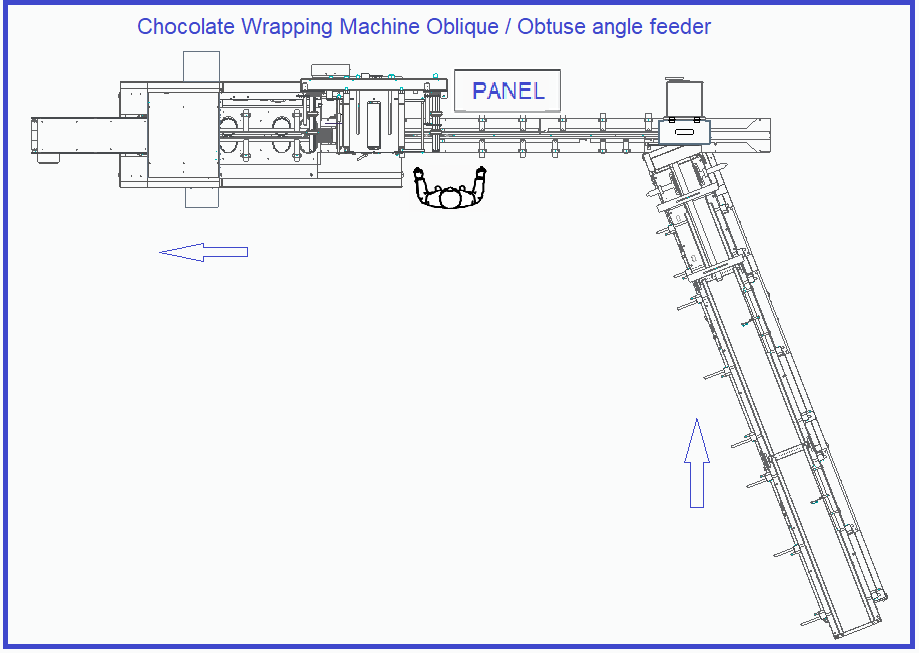

Different Models of Chocolate Wrapping machine.
Line Solution ( Connect Upstream line with Wrapping machine )

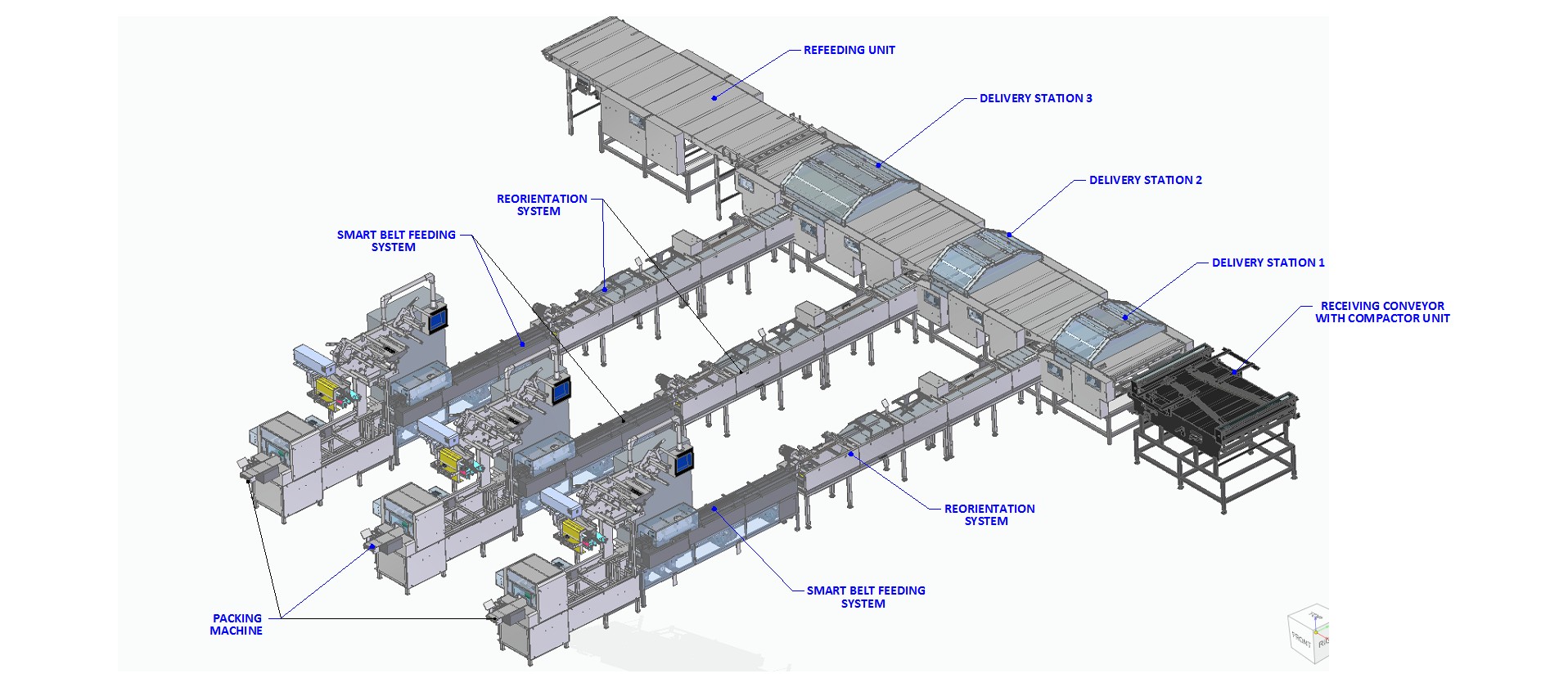

- After receiving product Row wise in uniform pattern on cooling conveyor , FWT offer Automatic Distribution system with multiple stations connecting to multiple flow wrappers with hot stand machine or reversible buffer system Drawing

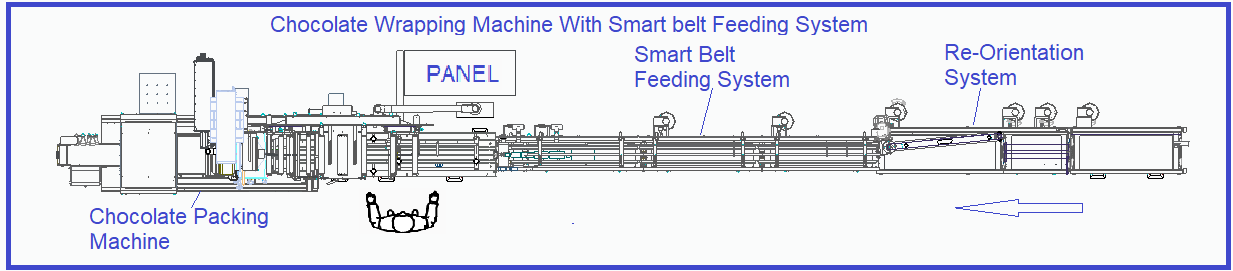

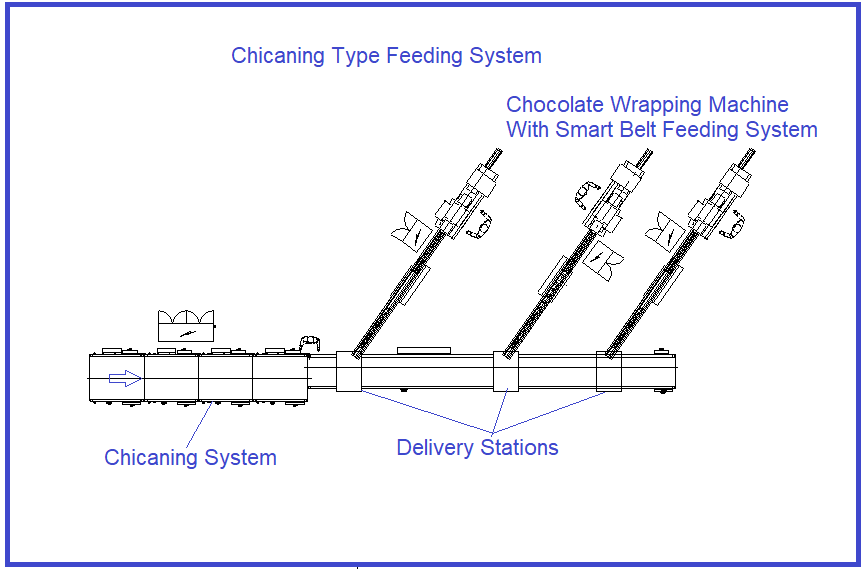

- Products not in uniform pattern , FWT offers Chicaning Type Feeding System connecting to multiple flow wrappers Drawing

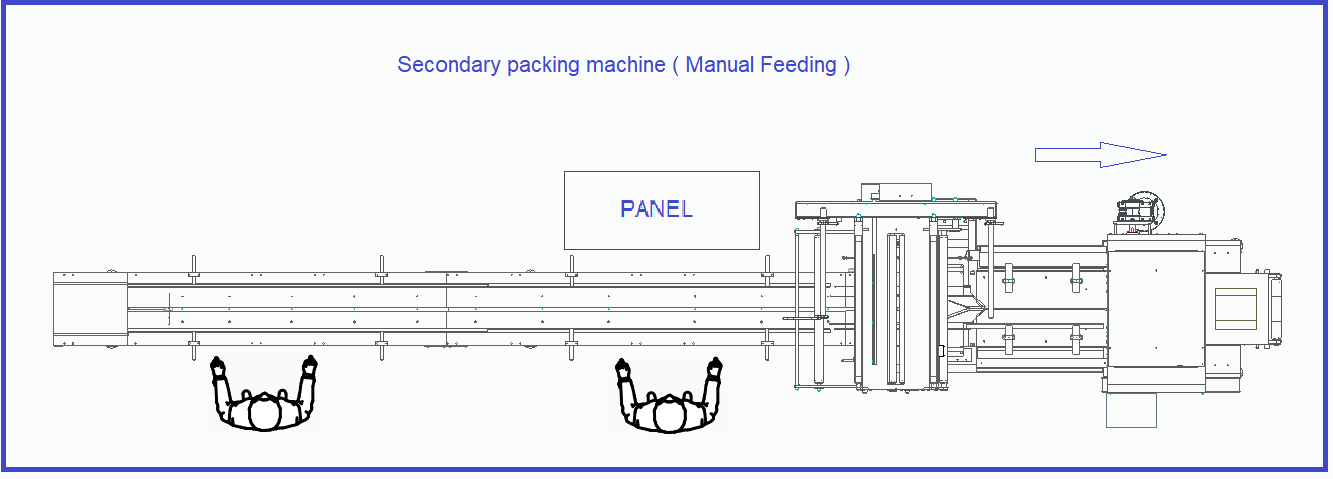

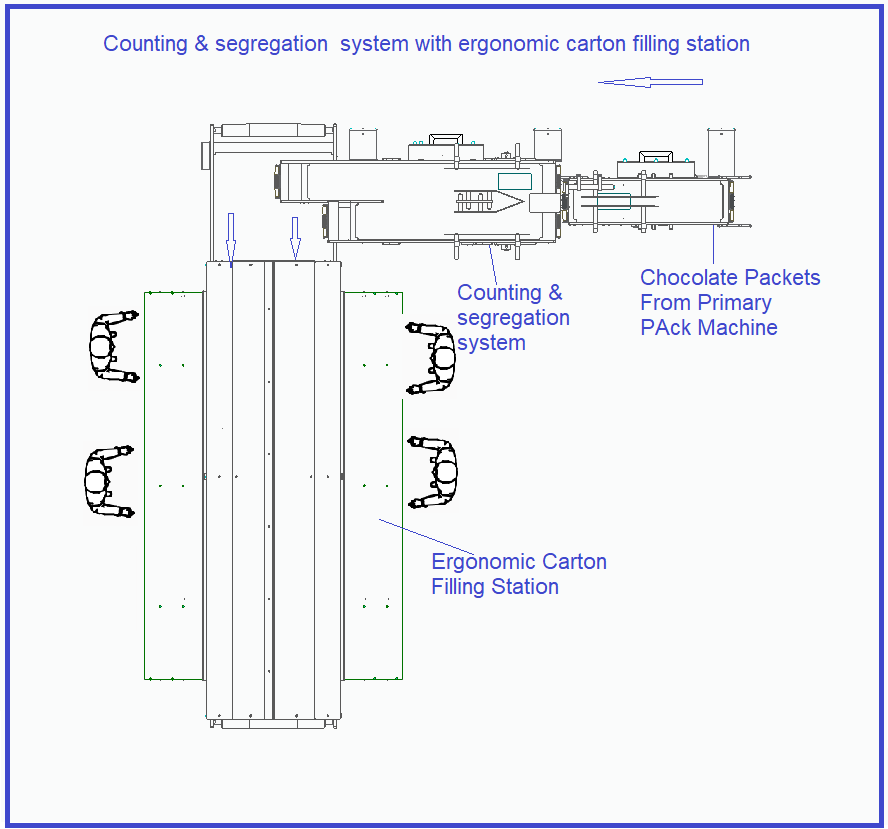

End Line Solution
STANDARD FEATURES
- Machine construction with Side driven mechanism to ensure hygiene and maintenance free approach.
- Wrapper material : most common Heat Sealable wrapper
- One pair of Pulling rollers and two pairs of sealing rollers provided.
- Ergonomic Twin reel holders
- Sealing jaws with horizontal serration
- Servo driven machine.
- Repeat length adjustment thru HMI.
- Conventional type slip rings.
- All parts coming in contact with the product are Stainless steel 304 or food grade plastic.
- All guard & covers of Mild steel, transparent covers are made of Polycarbonate of 6mm thickness.
- Powder coated based Colour shade RAL 1013.
- Frequently opening guards are provided with interlocking arrangement.
- Motion control with PLC.
- 7" touch screen HMI with working programs memorization
- Machine diagnostic.
- Temperature control through TC
- Power 5 KW ( depending on model)
OPTIONAL FEATURES
- Left to Right / Right to Left Machine Orientation
- Continues 'V' notch cutter / Plain cutter / Single V notch cutter
- Electronic Dwell
- Twin/Three Sealing Jaws.
- Suitable packing with cold seal wrapper
- Automatic Wrapper Roll Splicing Unit.
- Auto sealing roller open/close
- Mechanical / Pneumatic gusseting arrangement.
- Supervision system to detect laminate breakage while machine running.
- Less product detection and rejection system.
- Live product Dimension inspection system.
- Empty, Joint and Spliced pack rejection
- Heater failure indication
- Independent temperature control
- 10" touch screen HMI.
- Remote process diagnostics.
- Stainless steel 304 make guards
- Facility to mount Date coder unit
- Imported sealing jaws
- Enclosed Type Slip rings.
- Electrical panel with Multi-pin type connector
- PLC with IoT SCADA
TECHNICAL DETAILS
Product Length/Diameter | 30mm - 70mm |
Product Width/Diameter | 30mm - 70mm |
Product Height | 5mm - 50mm |
Cut off length | 70mm - 250mm |
Inside core diameter of laminate roll | 76 mm |
Maximum outside diameter of laminate roll | 300mm |
Maximum weight of laminate roll | 20 Kgs |
Maximum width of laminate roll | 280 mm |
Machine height at Infeed side and discharge conveyor end | 820 ±50mm |
Power Supply | 380/415 Volts, 50/60Hz |
Approximate machine size | 5.5m length x 2.0m width x 2.0 m height |
Approximate machine weight | 1500 Kgs |
