Family Pack Machine
This model suitable to pack plain/dry Biscuits/Cookies, Cream sandwiches, Rusks standing On-edge (vertical) style in multiple rows.
Speed of the machine ranging from 20 packs per minute to 100 packs per minute.(Maximum 200 stacks per minute)

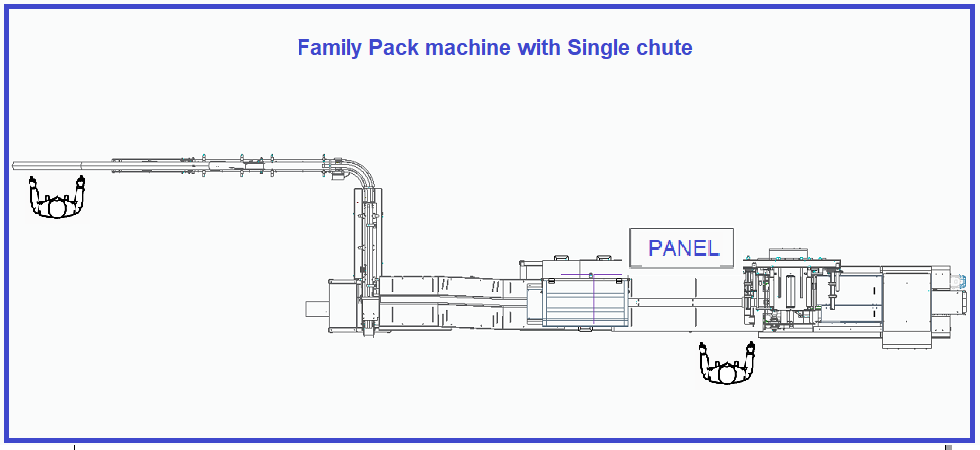

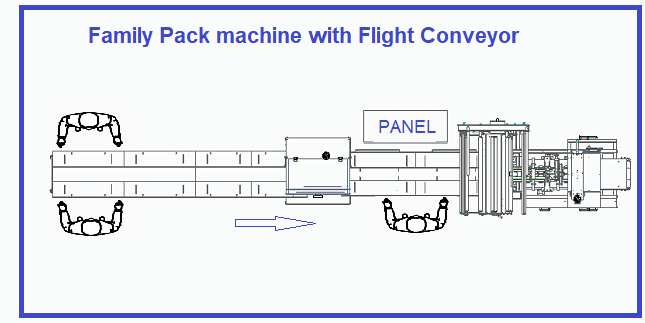

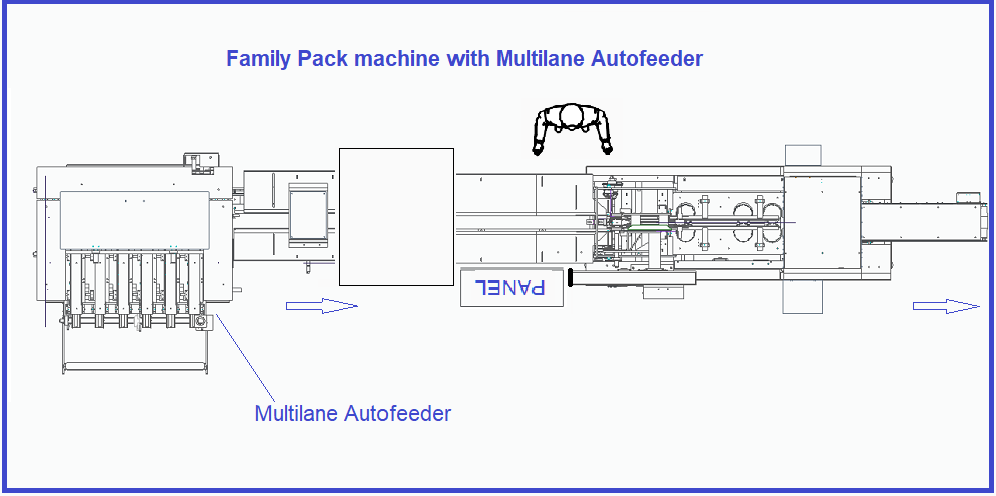

Different Models of Family Pack machine.
This Models are highly versatile, reliable, flexible in change over and easy in maintenance.

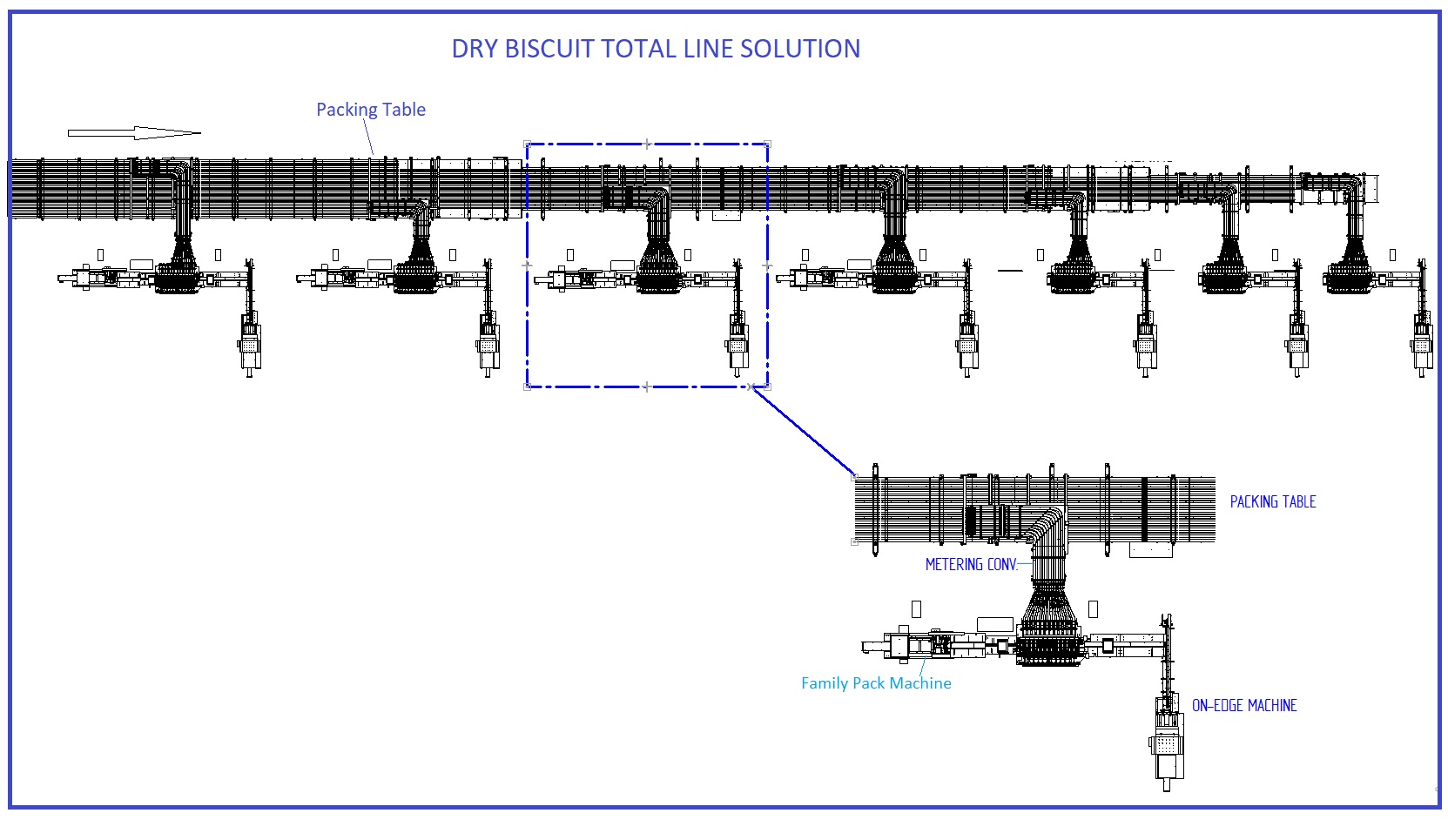

Line Solution ( Connect Upstream line Wrapping machine )
- After the cooling conveyor FWT offer Auto loading system Consist of, Dribble board, Star wheel stacker, Packing table, Metering conveyor, Lane diverting system to connect Multiple Flow wrap machine according to line capacity Drawing
STANDARD FEATURES
- Machine construction with Side driven mechanism to ensure hygiene and maintenance free approach.
- Wrapper material : most common Heat Sealable wrapper
- One pair of Pulling rollers and two pairs of sealing rollers provided.
- Ergonomic Twin reel holders
- Sealing jaws with horizontal serration
- Servo driven machine.
- Repeat length adjustment thru HMI.
- Conventional type slip rings.
- All parts coming in contact with the product are Stainless steel 304 or food grade plastic.
- All guard & covers of Mild steel, transparent covers are made of Polycarbonate of 6mm thickness.
- Powder coated based Colour shade RAL 1013.
- Frequently opening guards are provided with interlocking arrangement.
- Motion control with PLC.
- 7" touch screen HMI with working programs memorization
- Machine diagnostic.
- Temperature control through TC
- Power 5 KW ( depending on model)
OPTIONAL FEATURES
- Left to Right / Right to Left Machine Orientation
- Continues 'V' notch cutter / Plain cutter / Single V notch cutter
- Electronic Dwell
- Twin Sealing Jaws.
- Automatic Wrapper Roll Splicing Unit.
- Auto sealing roller open/close
- Row Collator unit for collation number of predefined rows
- Empty, Joint and Spliced pack rejection
- Pneumatic gusseting arrangement
- Heater failure indication
- Independent temperature control
- 10" touch screen HMI.
- Remote process diagnostics.
- Stainless steel 304 make guards
- Facility to mount Date coder unit
- Imported sealing jaws
- Enclosed Type Slip rings.
- Electrical panel with Multi-pin type connector
- Air extraction unit
- PLC with IoT SCADA
TECHNICAL DETAILS
| Product Length/Diameter | 30mm - 70mm |
| Product Width/Diameter | 30mm - 70mm |
| Stack length | 50mm - 200mm |
| Cut off length | 85mm - 350mm |
| Inside core diameter of laminate roll | 76 mm |
| Maximum outside diameter of laminate roll | 300mm |
| Maximum weight of laminate roll | 20 Kgs |
| Maximum width of laminate roll | 400 mm |
| Machine height at Infeed side and discharge conveyor end | 820 ±50mm |
| Power Supply | 380/415 Volts, 50/60Hz |
| Approximate machine size | 7.0m length x 1.8m width x 2.0 m height |
| Approximate machine weight | 1800 Kgs |
