Flow Wrap Technology Pvt Ltd

Noodle wrapping Solutions

This model suitable to pack Noodle in Following Configuration with Masala sachet

Different Models of Noodle Wrap machine

Noodle Wrap Machine ( Manual feed in Infeed ) Drawing

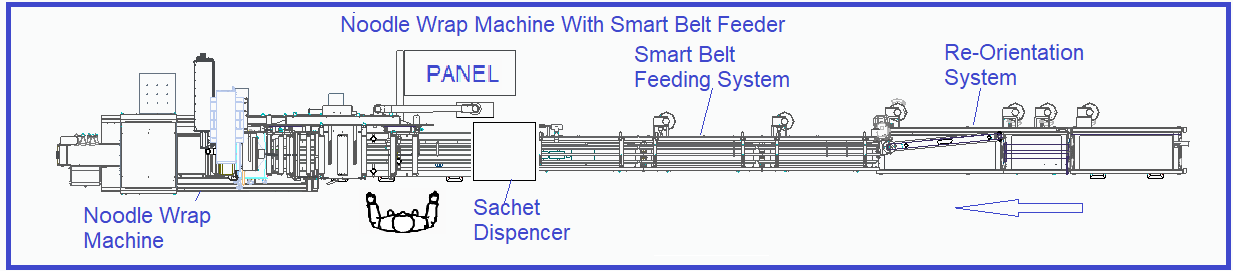

Noodle Wrap Machine With 1) Smart Belt Feeding system for Auto feeding of noodle, 2) Piling System for collecting noodle in pile, 3) Re-Orientation system for changing orientation from long side leading to short side leading and 4) String cutting unit. Drawing

Line Solution ( Connect Upstream line with Wrapping machine )

Automatic Distribution system with multiple stations connecting to multiple flow wrappers with hot stand machine or reversible buffer system Drawing

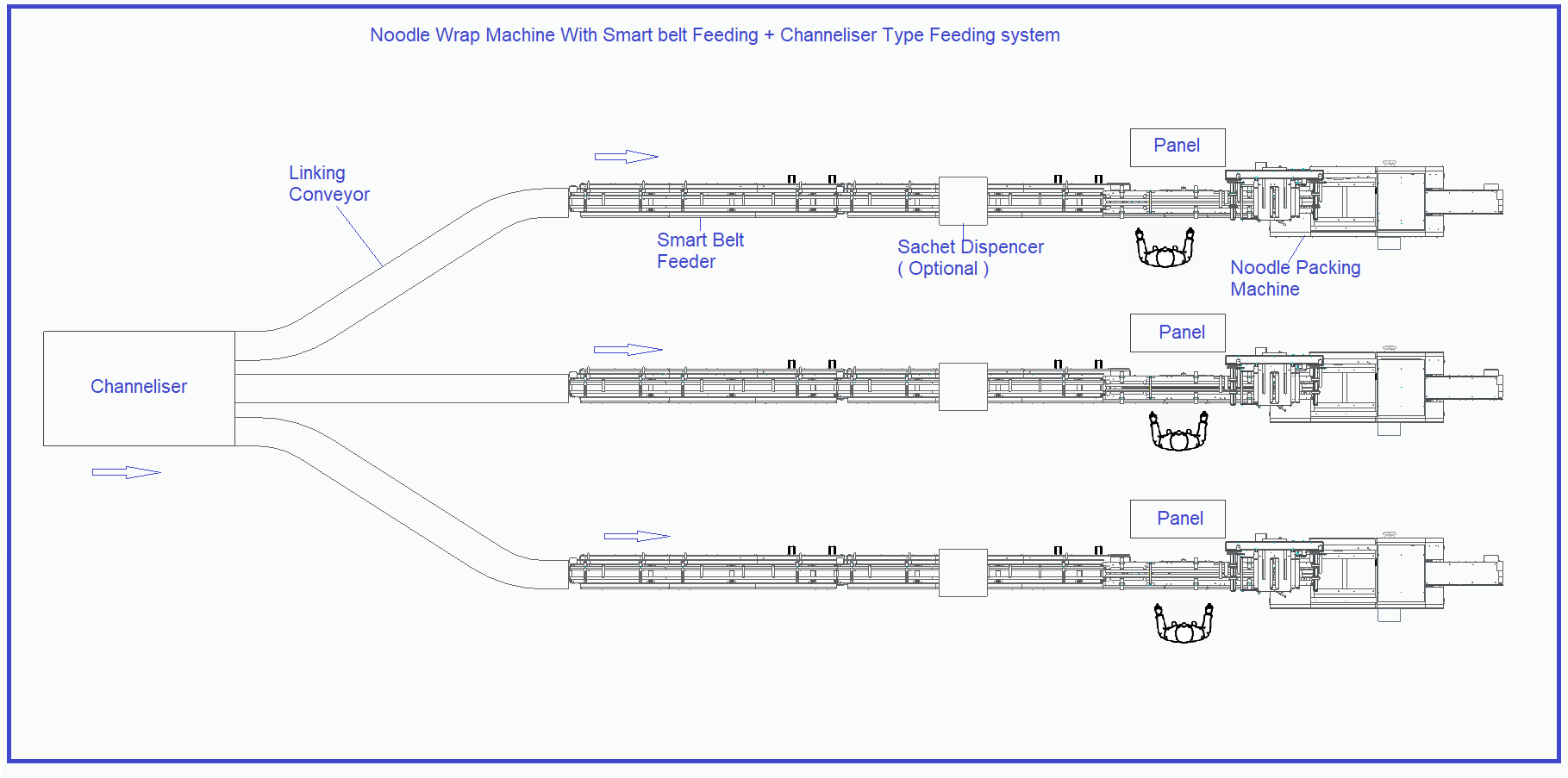

Channeliser type feeding system connecting to multiple flow wrappers. Drawing

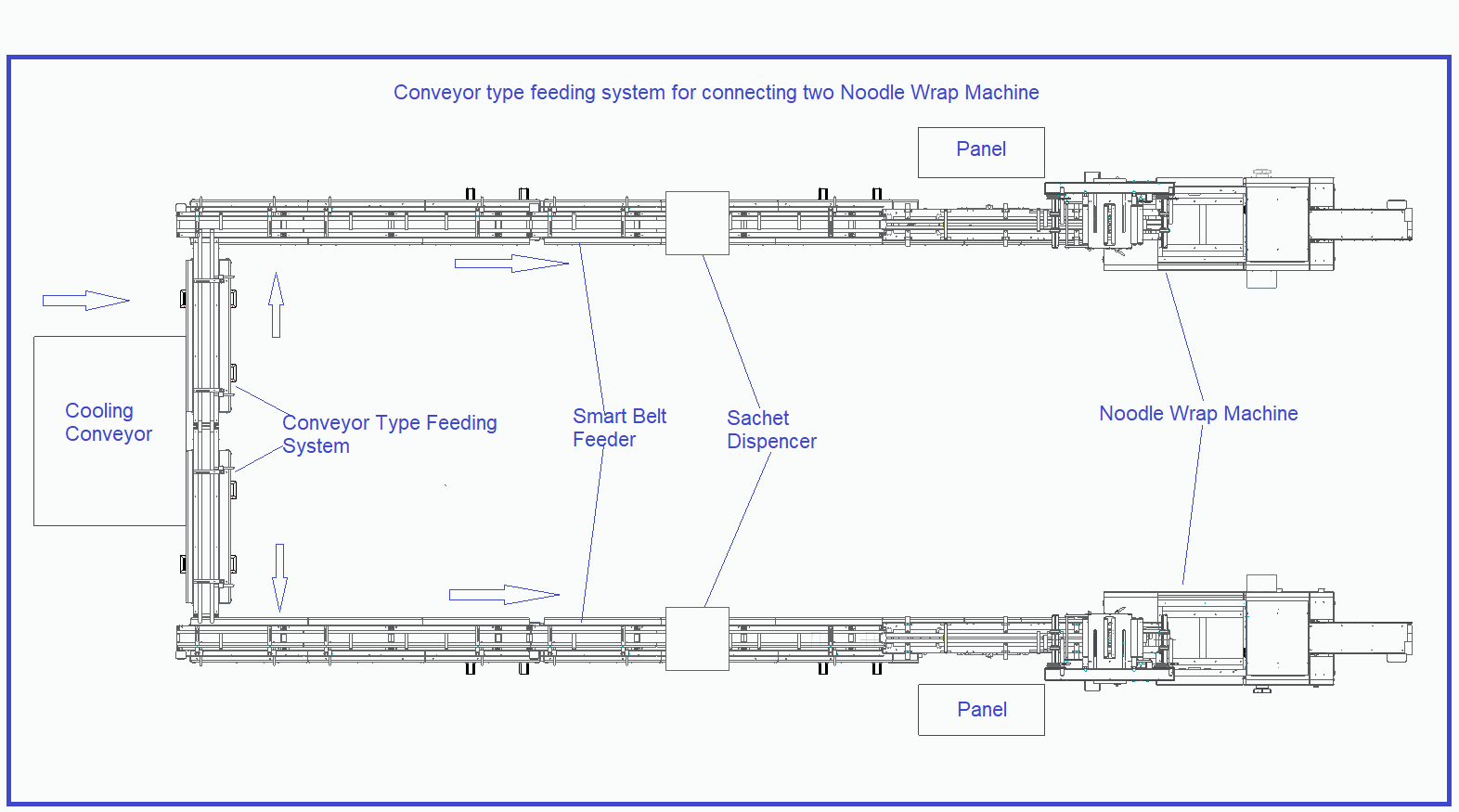

Conveyor type feeding system for connecting two flow wrappers Drawing

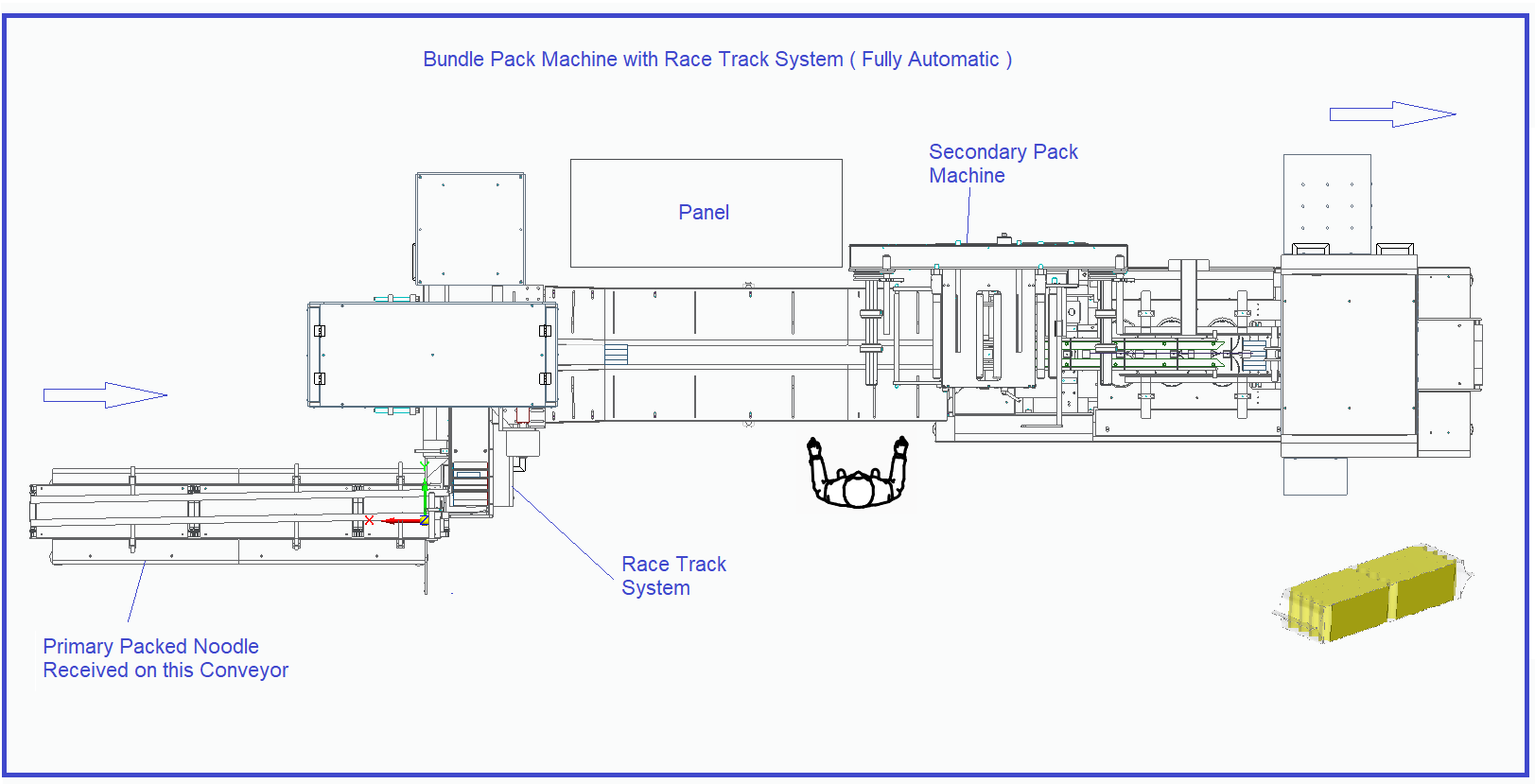

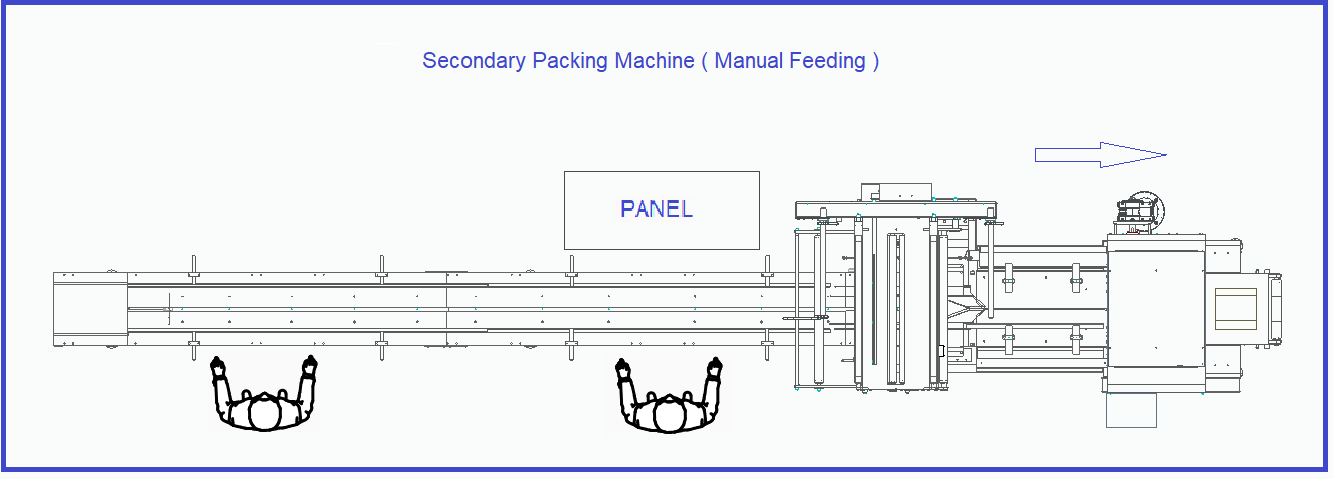

End Line Solution

Smart belt system with speciality of wave belt
Machine construction with Side driven mechanism to ensure hygiene and maintenance free approach.
Wrapper material : most common Heat Sealable wrapper
One pair of Pulling rollers and two pairs of sealing rollers provided.
Ergonomic Twin reel holders
Sealing jaws with horizontal serration
Special type of guide provided on infeed of machine for Masala Sachet
Special top holding conveyor provided after former box to hold sachet
Servo driven machine.
Repeat length adjustment thru HMI.
Conventional type slip rings.
All parts coming in contact with the product are Stainless steel 304 or food grade plastic.
All guard & covers of Mild steel, transparent covers are made of Polycarbonate of 6mm thickness.
Powder coated based Colour shade RAL 1013.
Frequently opening guards are provided with interlocking arrangement.
Motion control with PLC.
7" touch screen HMI with working programs memorization
Machine diagnostic.
Temperature control through TC
Power 5 KW ( depending on model)

Left to Right / Right to Left Machine Orientation
Continues 'V' notch cutter / Plain cutter / Single V notch cutter
Twin Sealing Jaws.
Electronic Dwell
Sachet at bottom packing available
Side by side noodle packing system available
Sachet detection and rejection system
Automatic Wrapper Roll Splicing Unit.
Auto sealing roller open/close
Chain pack producing and Chain cutting facility with predefined number of packs.
Supervision system to detect laminate breakage while machine running.
Less product detection and rejection system.
Empty, Joint and Spliced pack rejection
Heater failure indication
Independent temperature control
10" touch screen HMI.
Remote process diagnostics.
Stainless steel 304 make guards
Facility to mount Date coder unit
Imported sealing jaws
Enclosed Type Slip rings.
Electrical panel with Multi-pin type connector
PLC with IoT SCADA

Product Length	30mm - 70mm
Product Width	30mm - 70mm
Product Height	5mm - 50mm
Cut off length	70mm - 500mm
Inside core diameter of laminate roll	76 mm
Maximum outside diameter of laminate roll	300mm
Maximum weight of laminate roll	20 Kgs
Maximum width of laminate roll	400 mm
Machine height at Infeed side and discharge conveyor end	820 ±50mm
Power Supply	380/415 Volts, 50/60Hz
Approximate machine size	5.5m length x 2.0m width x 2.0 m height
Approximate machine weight	1500 Kgs
