Pile Pack Machine


This model suitable to pack plain/dry biscuits and cream sandwiches on Pile (on its surface) style without any tray.

Speed for this machine is ranging from 80 packs per minute to 350 packs per minute.

Different Models of Pile Pack machine

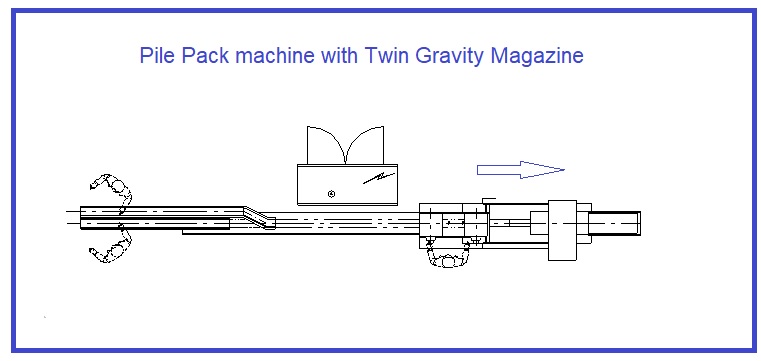

  • Pile Pack machine with Single Gravity Magazine / Twin Gravity Magazine / Single Ergonomic Vibratory Magazine / Twin Ergonomic Vibratory Magazine ( Manual Feeding ) Drawing

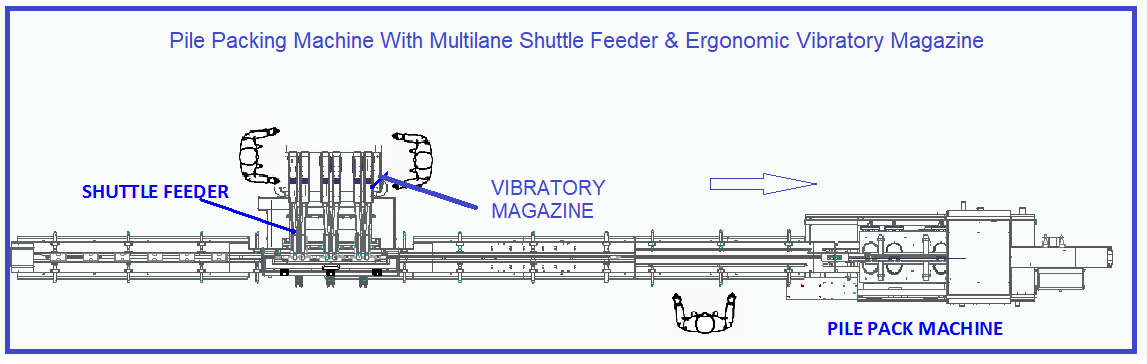

  • Pile Packing Machine With Multilane Shuttle Feeder & Ergonomic Vibratory feeding ( Manual Feeding ) Drawing
  • Pile Packing Machine With Multilane Shuttle Feeder & Auto feeding (Automatic feeding ) Drawing

This Models are highly versatile, reliable, flexible in change over and easy in maintenance.

Line Solution ( Connect Upstream line with Wrapping machine )

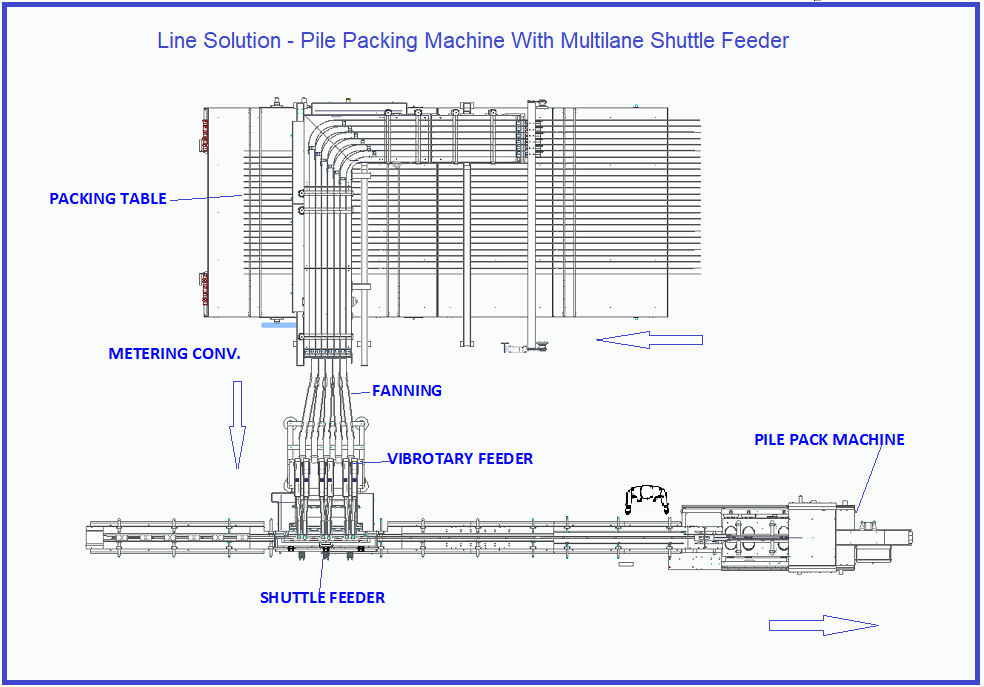

  • After receiving dry cell on cooling conveyor, FWT offer Auto loading system Consist of, Dribble board, Star wheel stacker, Packing table, Merging conveyor, ,Vibratory feeding system connect Multiple packing machine with Shuttle feeder according to line capacity. Drawing

End Line Solution ( After Packing Machine )

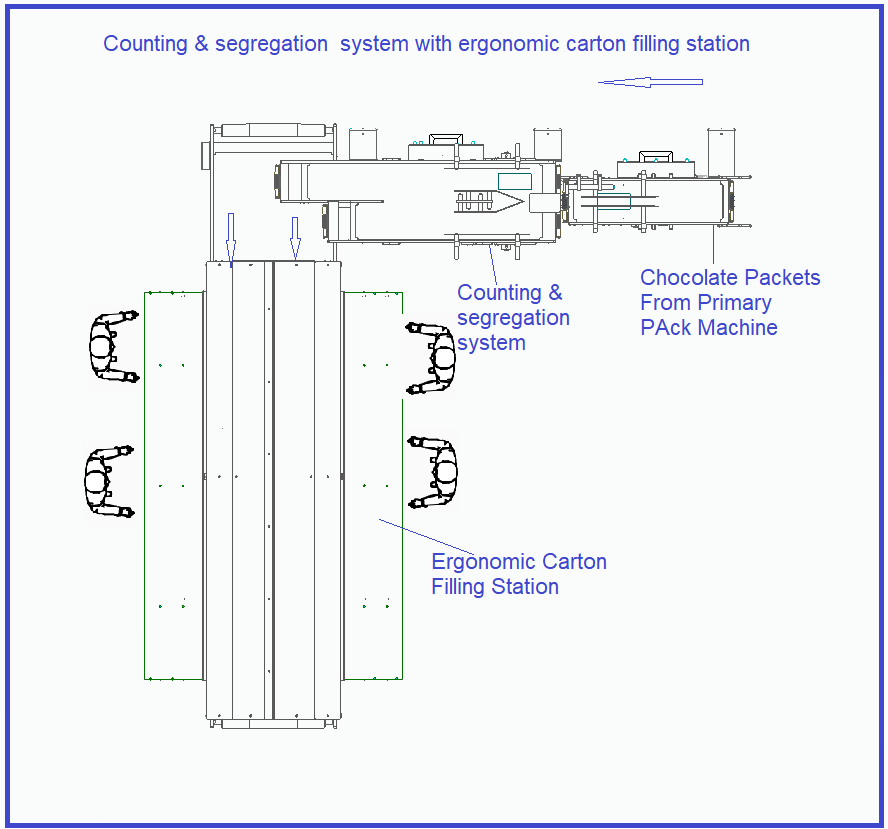

  • Counting & segregation system with ergonomic carton filling station Drawing

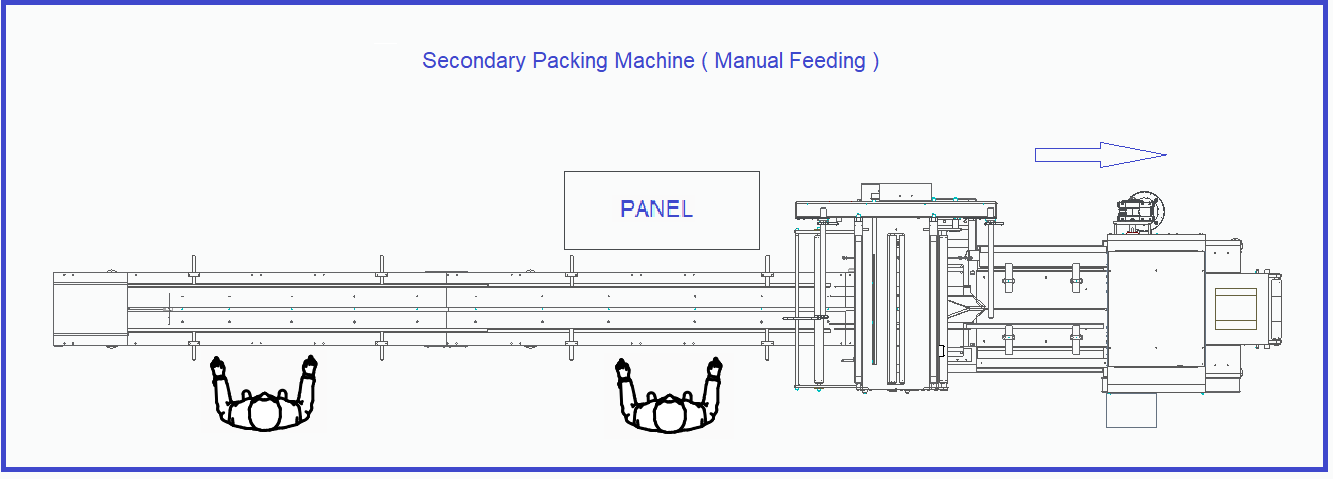

  • Secondary packing machine ( Manual Feeding ) Drawing
  • Machine construction with Side driven mechanism to ensure hygiene and maintenance free approach.
  • Wrapper material : most common Heat Sealable wrapper
  • One pair of Pulling rollers and two pairs of sealing rollers provided.
  • Ergonomic Twin reel holders
  • Sealing jaws with horizontal serration
  • Servo driven machine.
  • Repeat length adjustment thru HMI.
  • Conventional type slip rings.
  • All parts coming in contact with the product are Stainless steel 304 or food grade plastic.
  • All guard & covers of Mild steel, transparent covers are made of Polycarbonate of 6mm thickness.
  • Powder coated based Colour shade RAL 1013.
  • Frequently opening guards are provided with interlocking arrangement.
  • Motion control with PLC.
  • 7" touch screen HMI with working programs memorization
  • Machine diagnostic.
  • Temperature control through TC
  • Power 5 KW ( depending on model)
  • Left to Right / Right to Left Machine Orientation
  • Continues 'V' notch cutter / Plain cutter / Single V notch cutter
  • Twin Sealing Jaws.
  • Automatic Wrapper Roll Splicing Unit.
  • Auto sealing roller open/close
  • Chain pack producing and Chain cutting facility with predefined number of packs.
  • Supervision system to detect laminate breakage while machine running.
  • Less product detection and rejection system.
  • Empty, Joint and Spliced pack rejection
  • Heater failure indication
  • Independent temperature control
  • 10" touch screen HMI.
  • Remote process diagnostics.
  • Stainless steel 304 make guards
  • Facility to mount Date coder unit
  • Imported sealing jaws
  • Enclosed Type Slip rings.
  • Electrical panel with Multi-pin type connector
  • PLC with IoT SCADA
Product Length/Diameter 30mm - 70mm
Product Width/Diameter 30mm - 70mm
Product Height 5mm - 50mm
Cut off length 70mm - 300mm
Inside core diameter of laminate roll 76 mm
Maximum outside diameter of laminate roll 300mm
Maximum weight of laminate roll 20 Kgs
Maximum width of laminate roll 280 mm
Machine height at Infeed side and discharge conveyor end 820 ±50mm
Power Supply 380/415 Volts, 50/60Hz
Approximate machine size 5.5m length x 2.0m width x 2.0 m height
Approximate machine weight 1500 Kgs
