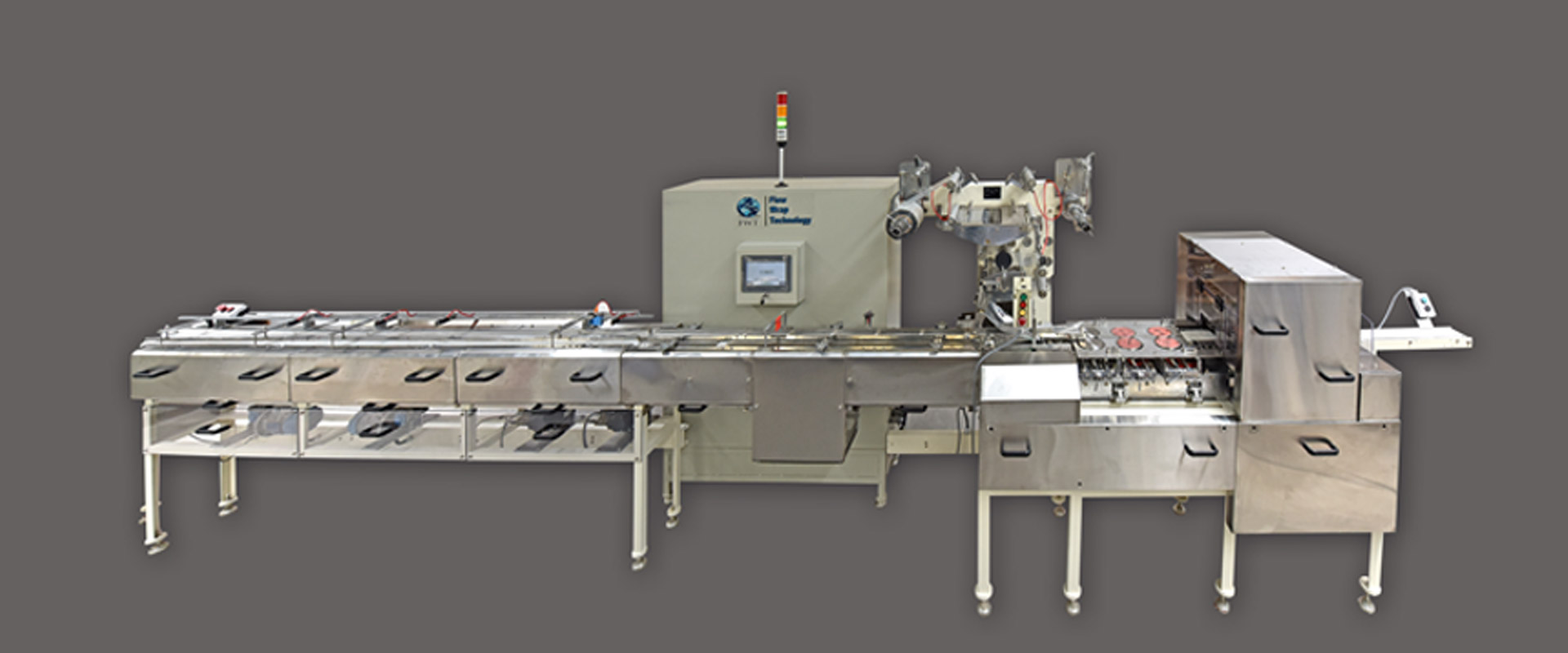

Soap Wraping Solution
![Service](../content/media/service/soap-machine.jpg)
This model suitable to pack Detergent bars, Laundry bars, Dish washer bars and Toilet soap of various sizes and shapes.
Depending on machine model, machine speed ranging from 100 bars to 400 bars per minute.

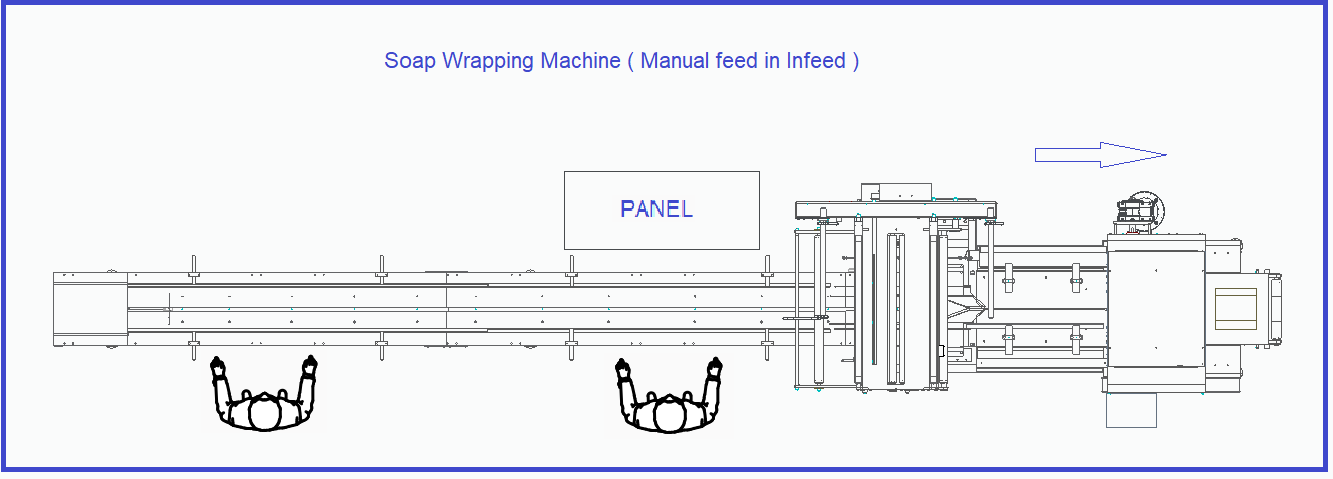

Different Models of Soap Wrapping machine
This Models are highly versatile, reliable, flexible in change over and easy in maintenance.

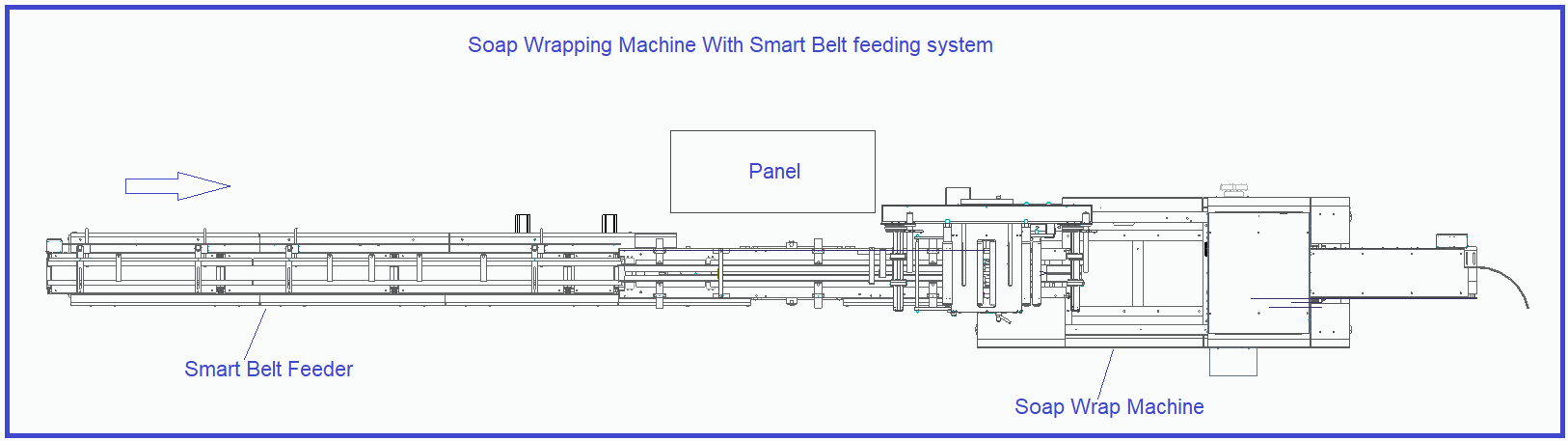

Line Solution:- Connect Upstream line (Plodder/Stamper) with Soap Wrapping machine.

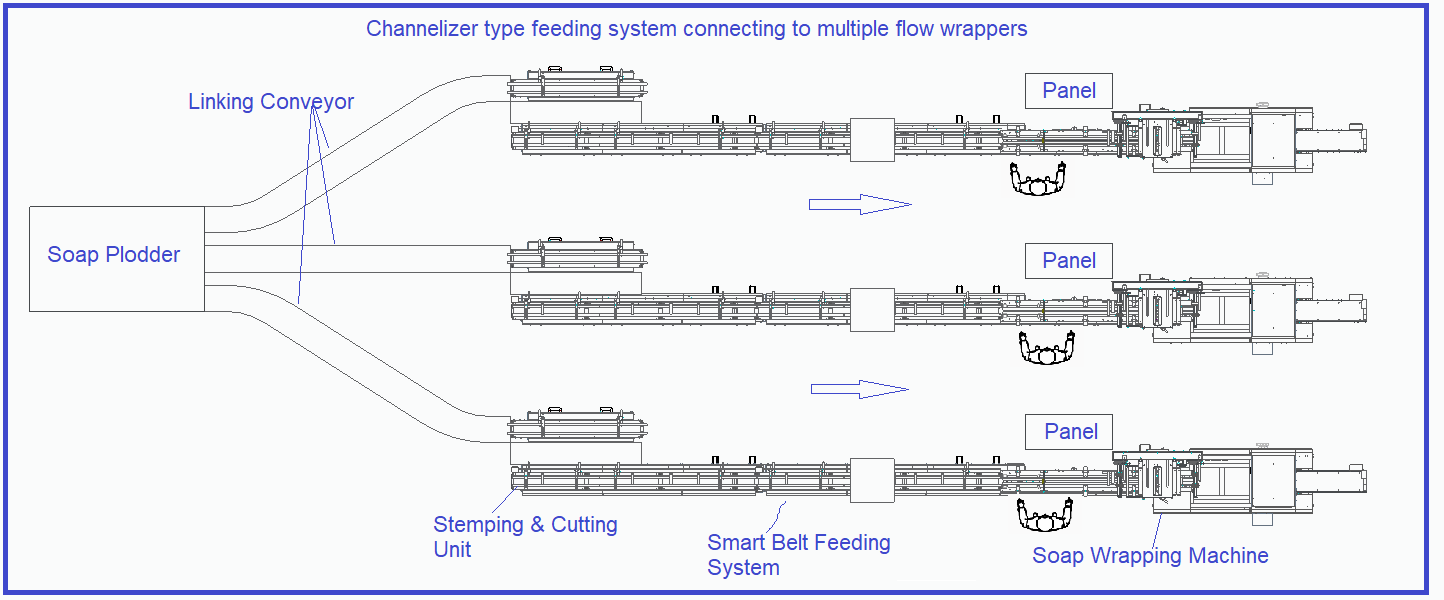

- Channelizer type feeding system connecting to multiple flow wrappers with upstream. Drawing
End Line Solution

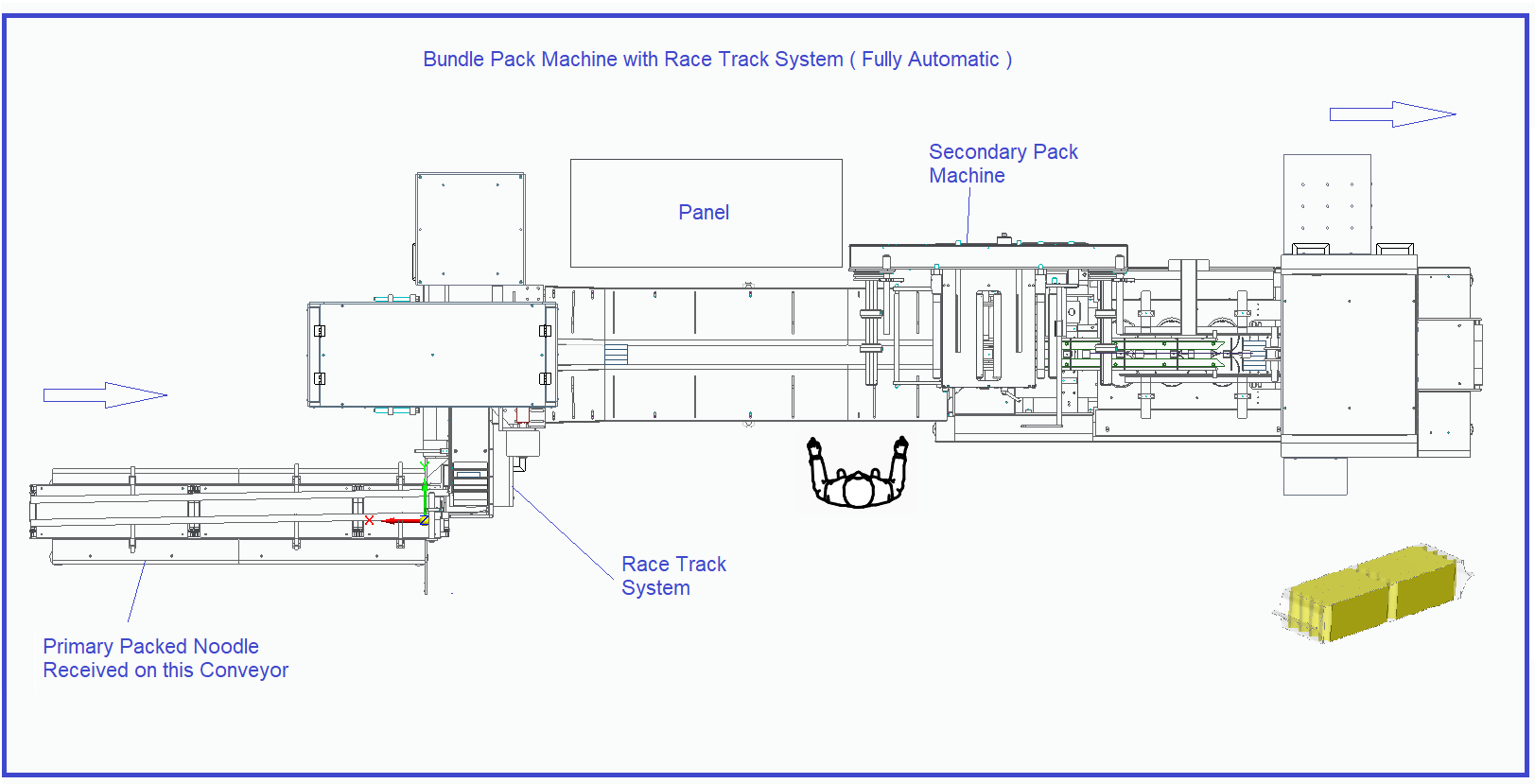

- Bundle Pack Machine with Race Track System ( Fully Automatic ) Drawing
STANDARD FEATURES
- Machine construction with Side driven mechanism to ensure hygiene and maintenance free approach.
- Wrapper material : most common Heat Sealable wrapper
- One pair of Pulling rollers and two pairs of sealing rollers provided.
- Ergonomic Twin reel holders
- Sealing jaws with horizontal serration
- Servo driven machine.
- Repeat length adjustment thru HMI.
- Conventional type slip rings.
- All parts coming in contact with the product are Stainless steel 304 or food grade plastic.
- All guard & covers of Mild steel, transparent covers are made of Polycarbonate of 6mm thickness.
- Powder coated based Colour shade RAL 1013.
- Frequently opening guards are provided with interlocking arrangement.
- Motion control with PLC.
- 7" touch screen HMI with working programs memorization
- Machine diagnostic.
- Temperature control through TC
- Power 5 KW ( depending on model)
OPTIONAL FEATURES
- Left to Right / Right to Left Machine Orientation
- Continues 'V' notch cutter / Plain cutter / Single V notch cutter
- Twin Sealing Jaws.
- Automatic Wrapper Roll Splicing Unit.
- Auto sealing roller open/close
- Mechanical / Pneumatic gusseting arrangement.
- Supervision system to detect laminate breakage while machine running.
- Less product detection and rejection system.
- Empty, Joint and Spliced pack rejection
- Heater failure indication
- Independent temperature control
- 10" touch screen HMI.
- Remote process diagnostics.
- Stainless steel 304 make guards
- Facility to mount Date coder unit
- Imported sealing jaws
- Enclosed Type Slip rings.
- Electrical panel with Multi-pin type connector
- PLC with IoT SCADA
TECHNICAL DETAILS
Product Length | 30mm - 400mm |
Product Width | 30mm - 70mm |
Product Height | 10mm - 50mm |
Cut off length | 70mm - 450mm |
Inside core diameter of laminate roll | 76 mm |
Maximum outside diameter of laminate roll | 300mm |
Maximum weight of laminate roll | 20 Kgs |
Maximum width of laminate roll | 280 mm |
Machine height at Infeed side and discharge conveyor end | 820 ±50mm |
Power Supply | 380/415 Volts, 50/60Hz |
Approximate machine size | 5.5m length x 2.0m width x 2.0 m height |
Approximate machine weight | 1500 Kgs |
