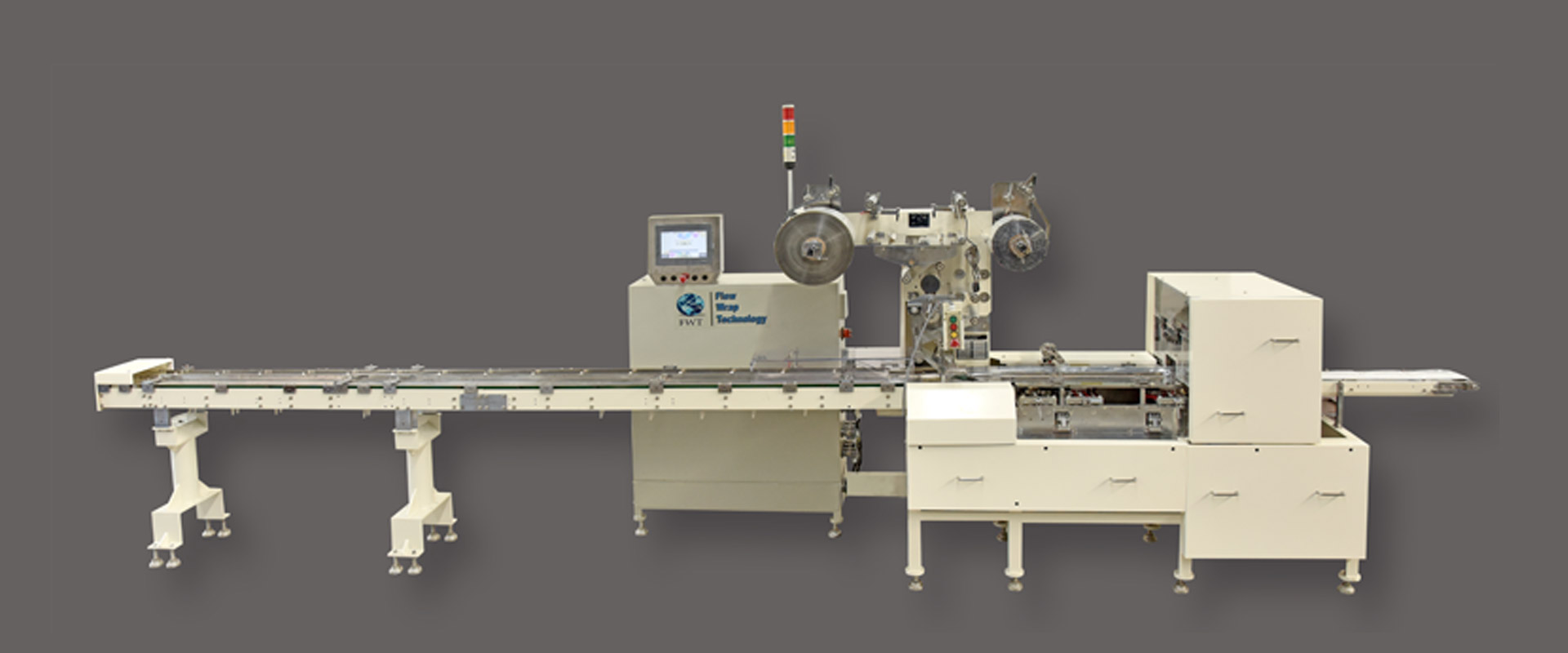

Versatile Machine
![Service](../content/media/service/versatile-machine.jpg)
As per the name, this model is versatile enough to pack several flow wrapping applications. This is standalone model with manual feeding of products with or without tray. It is suitable to pack Bakery item like Cupcakes, Layer cake , Slice Cakes, Rusks, Donut, Pizza Base, Buns etc. Machine speed from 30 packs to 120 packs per minute depending the application.
Depending on machine model, machine speed ranging from 30 to 150 packs per minute.
Model

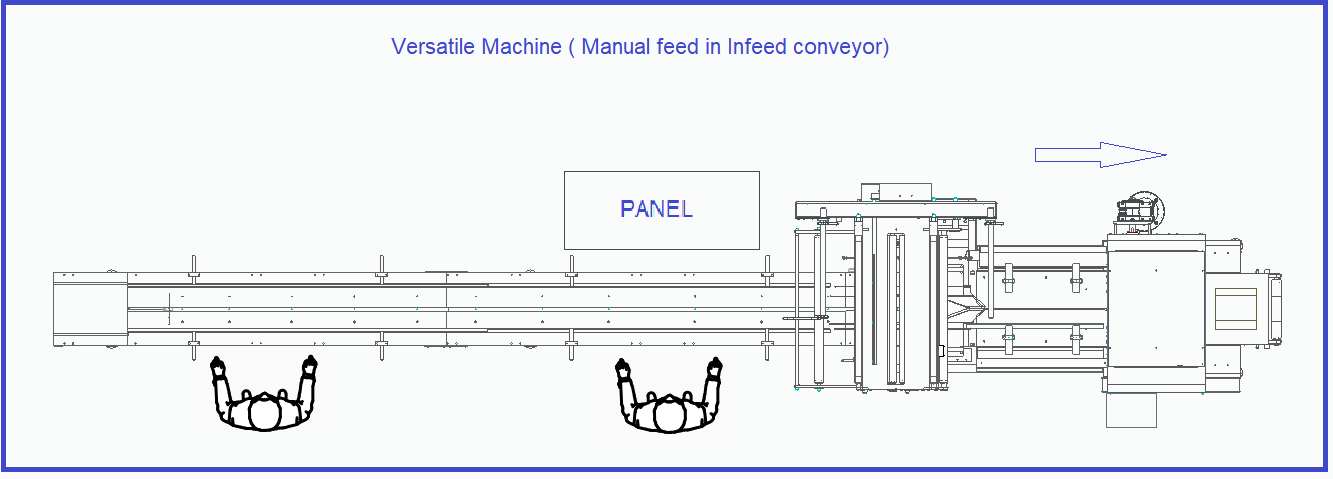

- Versatile Machine ( Manual feed in Infeed conveyor) Drawing
Line Solution ( Connect Upstream line with Wrapping machine )

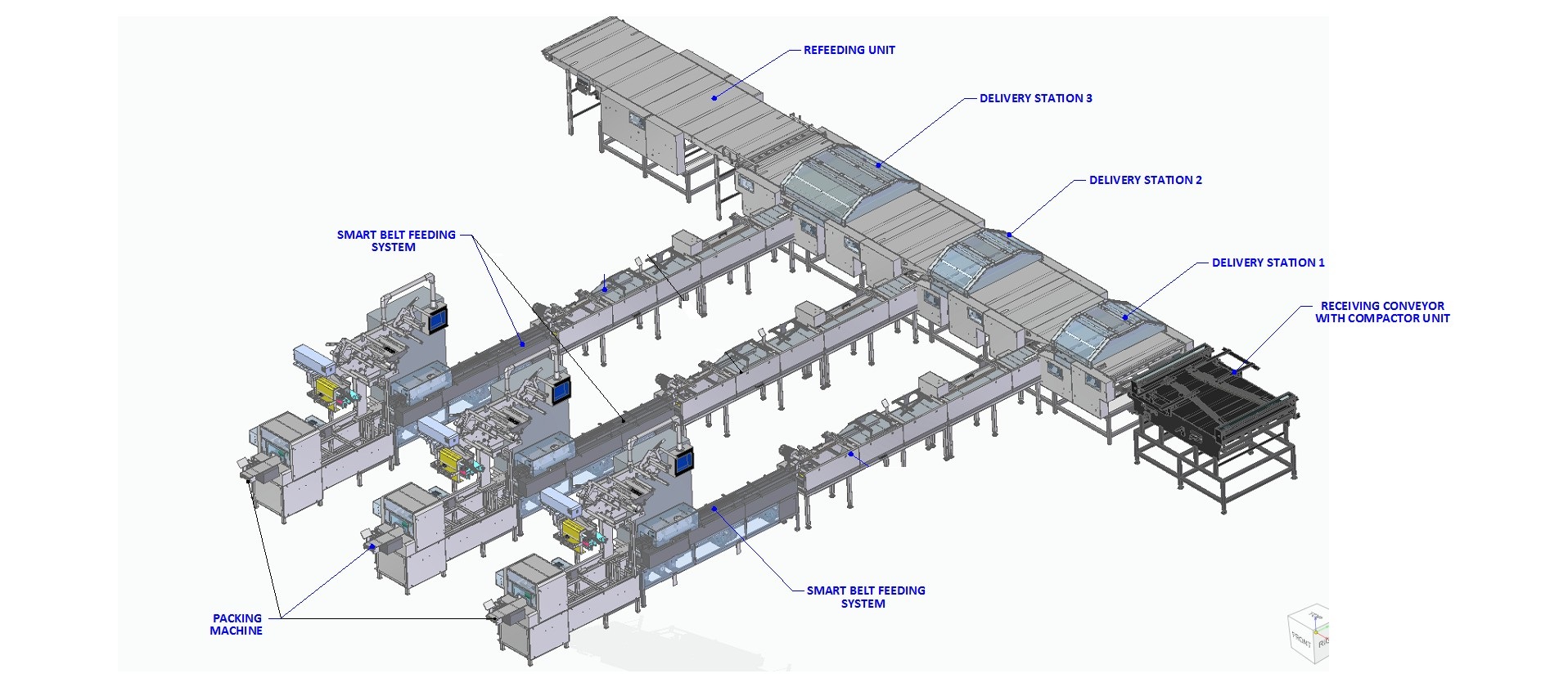

- Product like Layer cake / Cup cake with Row wise in uniform pattern at the end of upstream conveyor, FWT offer Automatic Distribution system with multiple stations connecting to multiple flow wrappers with hot stand machine or reversible buffer system Drawing

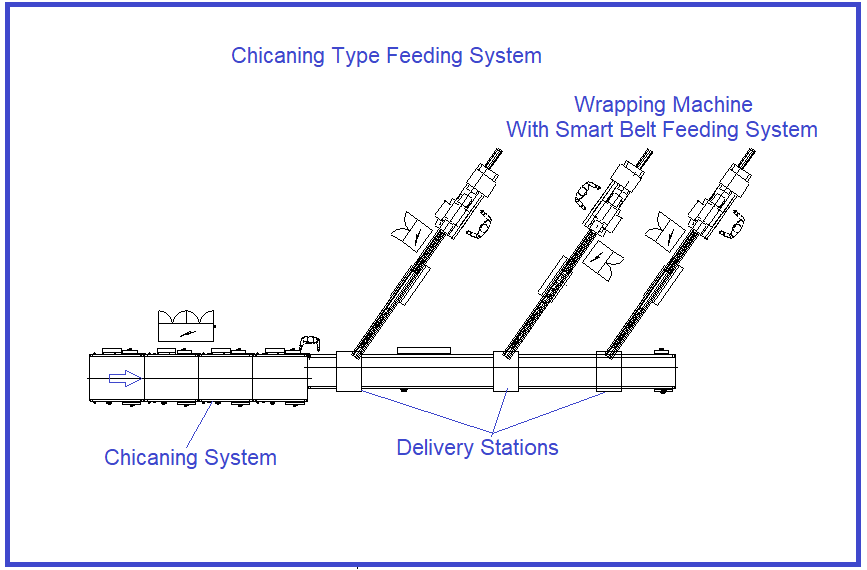

- Product like Donut/Cup cake, if not in uniform pattern, FWT offers chicaning type feeding system connecting to multiple flow wrappers. Drawing
End Line Solution

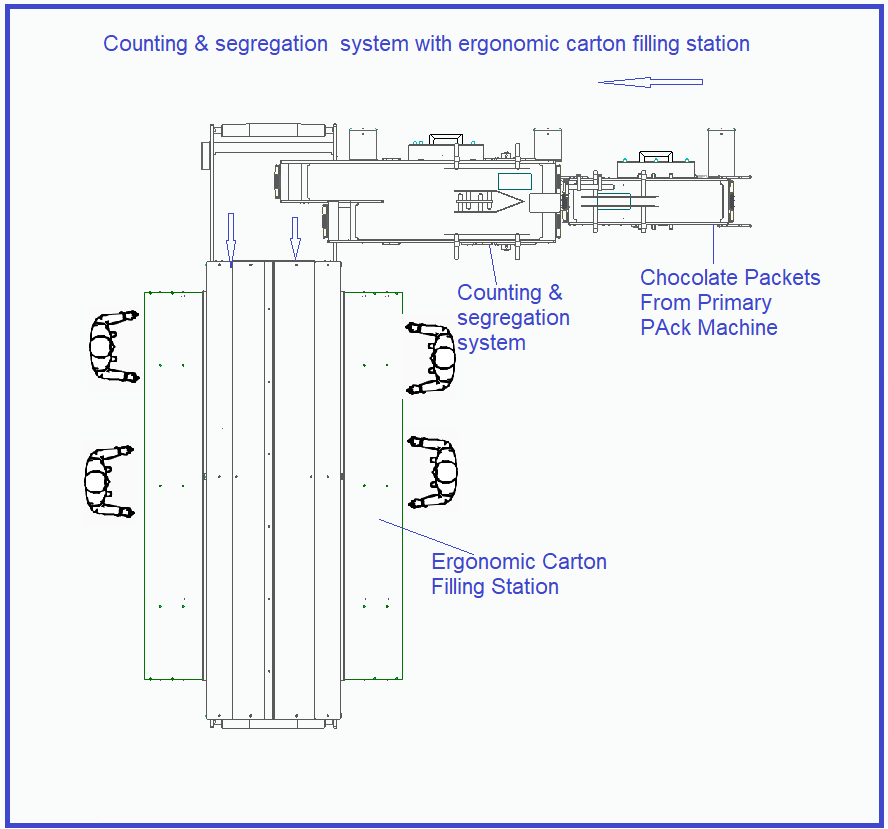

- Counting & segregation system with ergonomic carton filling station Drawing
STANDARD FEATURES
- Machine construction with Side driven mechanism to ensure hygiene and maintenance free approach.
- Wrapper material : most common Heat Sealable wrapper
- One pair of Pulling rollers and two pairs of sealing rollers provided.
- Ergonomic Twin reel holders
- Sealing jaws with horizontal serration
- Servo driven machine.
- Repeat length adjustment thru HMI.
- Conventional type slip rings.
- All parts coming in contact with the product are Stainless steel 304 or food grade plastic.
- All guard & covers of Mild steel, transparent covers are made of Polycarbonate of 6mm thickness.
- Powder coated based Colour shade RAL 1013.
- Frequently opening guards are provided with interlocking arrangement.
- Motion control with PLC.
- 7" touch screen HMI with working programs memorization
- Machine diagnostic.
- Temperature control through TC
- Power 5 KW ( depending on model)
OPTIONAL FEATURES
- Left to Right / Right to Left Machine Orientation
- Continues 'V' notch cutter / Plain cutter / Single V notch cutter
- Twin Sealing Jaws.
- Electronic Dwell
- Map system
- Packing with cold seal wrapper
- Automatic Wrapper Roll Splicing Unit.
- Auto sealing roller open/close
- Mechanical / Pneumatic gusseting arrangement.
- Supervision system to detect laminate breakage while machine running.
- Less product detection and rejection system.
- Empty, Joint and Spliced pack rejection
- Heater failure indication
- Independent temperature control
- 10" touch screen HMI.
- Remote process diagnostics.
- Stainless steel 304 make guards
- Facility to mount Date coder unit
- Imported sealing jaws
- Enclosed Type Slip rings.
- Electrical panel with Multi-pin type connector
- PLC with IoT SCADA
TECHNICAL DETAILS
Product Length/Diameter | 30mm - 70mm |
Product Width/Diameter | 30mm - 70mm |
Product Height | 5mm - 50mm |
Cut off length | 70mm - 250mm |
Inside core diameter of laminate roll | 76 mm |
Maximum outside diameter of laminate roll | 300mm |
Maximum weight of laminate roll | 20 Kgs |
Maximum width of laminate roll | 280 mm |
Machine height at Infeed side and discharge conveyor end | 820 ±50mm |
Power Supply | 380/415 Volts, 50/60Hz |
Approximate machine size | 5.5m length x 2.0m width x 2.0 m height |
Approximate machine weight | 1500 Kgs |
