Wafer Packing Machine
This model suitable to pack wafers biscuits , Chocolate coated wafer ,Wafer Rolls with heat seal.
Depending on machine model, machine speed ranging from 30 packs to 200 packs per minute.
Different Models of Wafer Wrapping machine

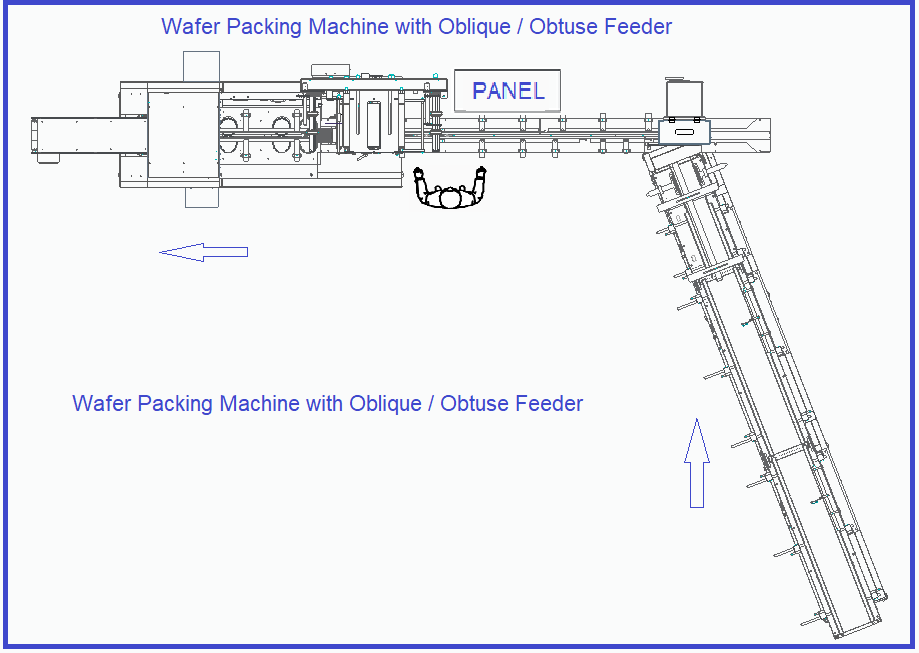

- Wafer Wrapping Machine Oblique / Obtuse angle feeder Drawing

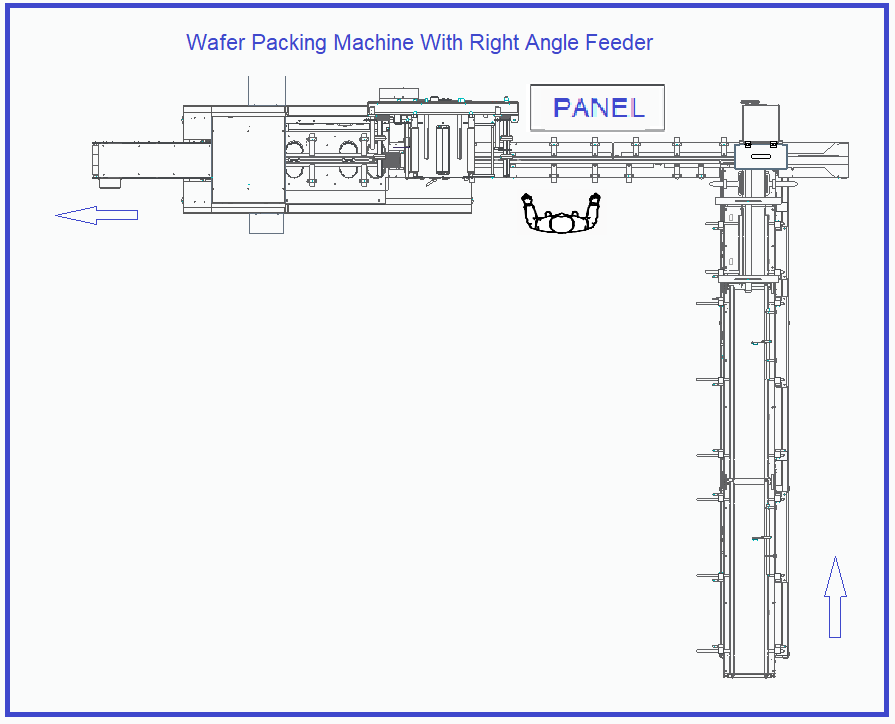

- Wafer Wrapping Machine Right angle feeder ( Can handle wafer short side leading as well long side leading ) Drawing

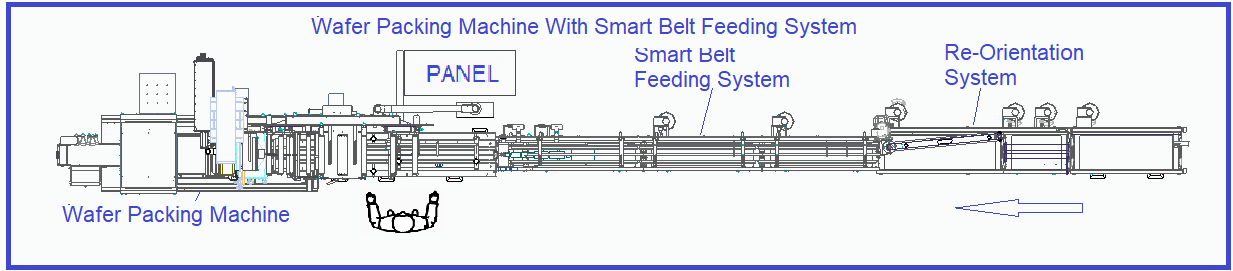

- Wafer Wrapping Machine with Smart Belt Feeding system for Auto feeding of chocolate coated wafer and Re-Orientation system for changing orientation from long side leading to short side leading Drawing

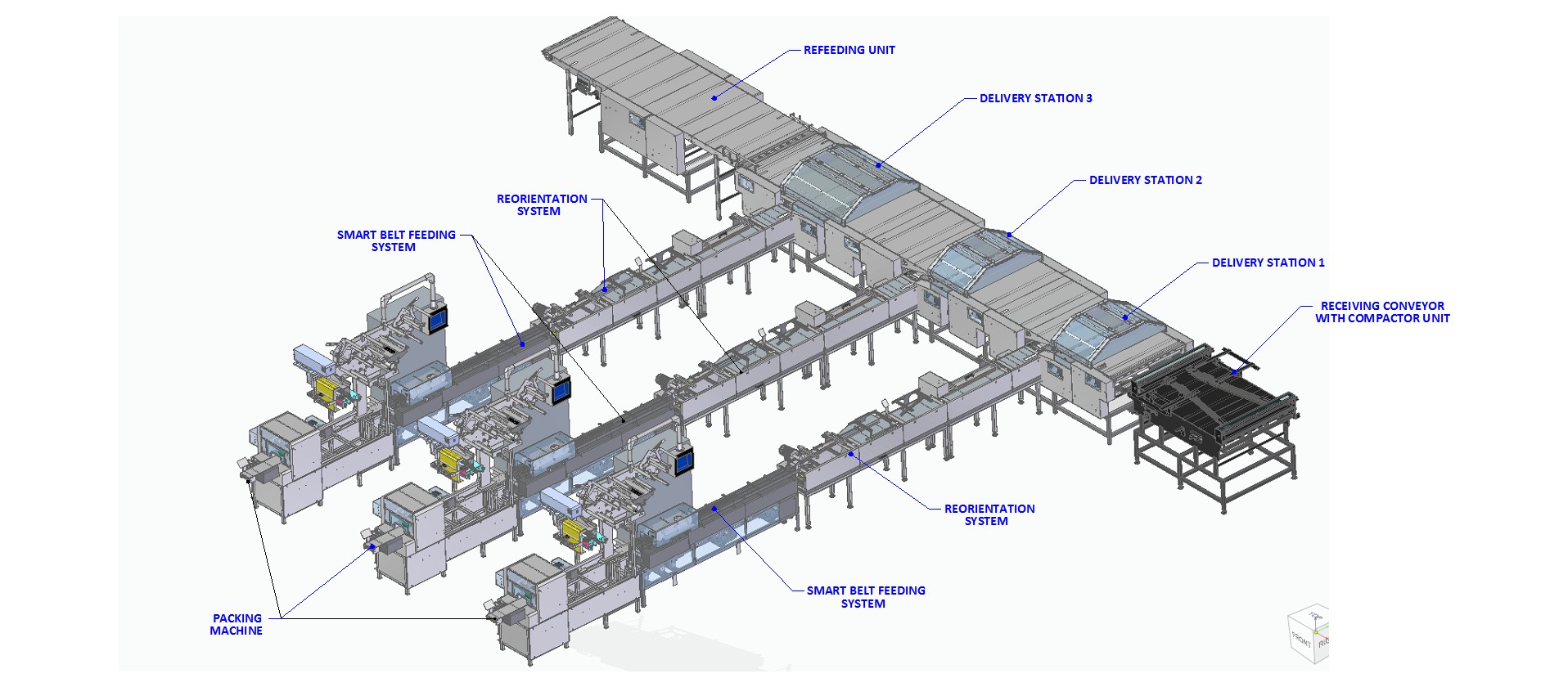

Line Solution ( Connect Upstream line with Wrapping machine )

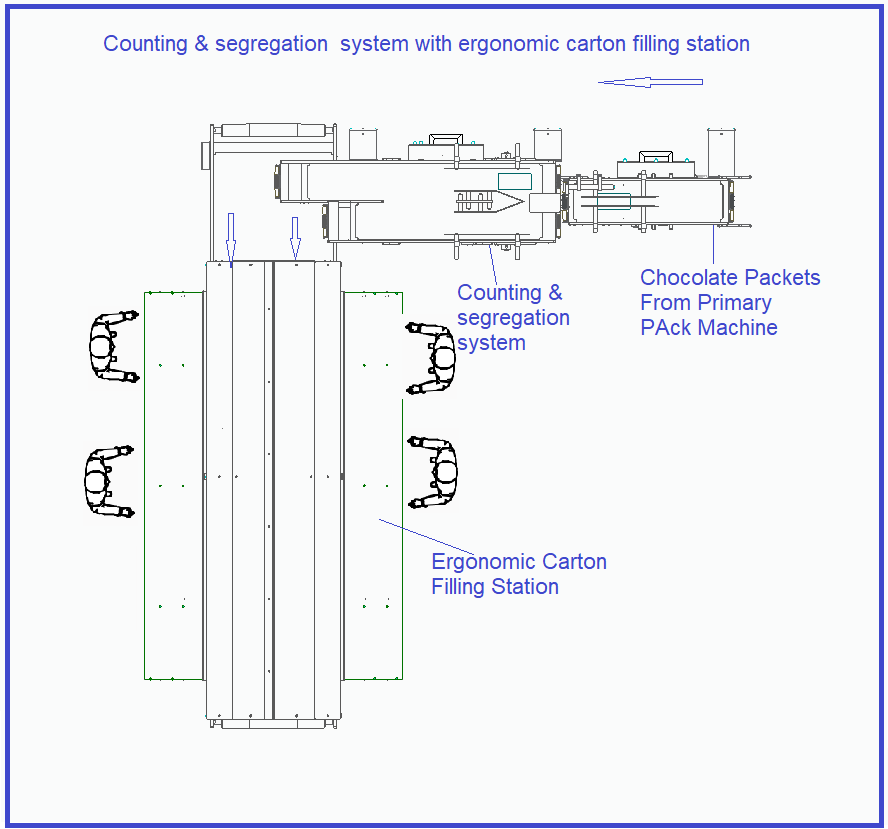

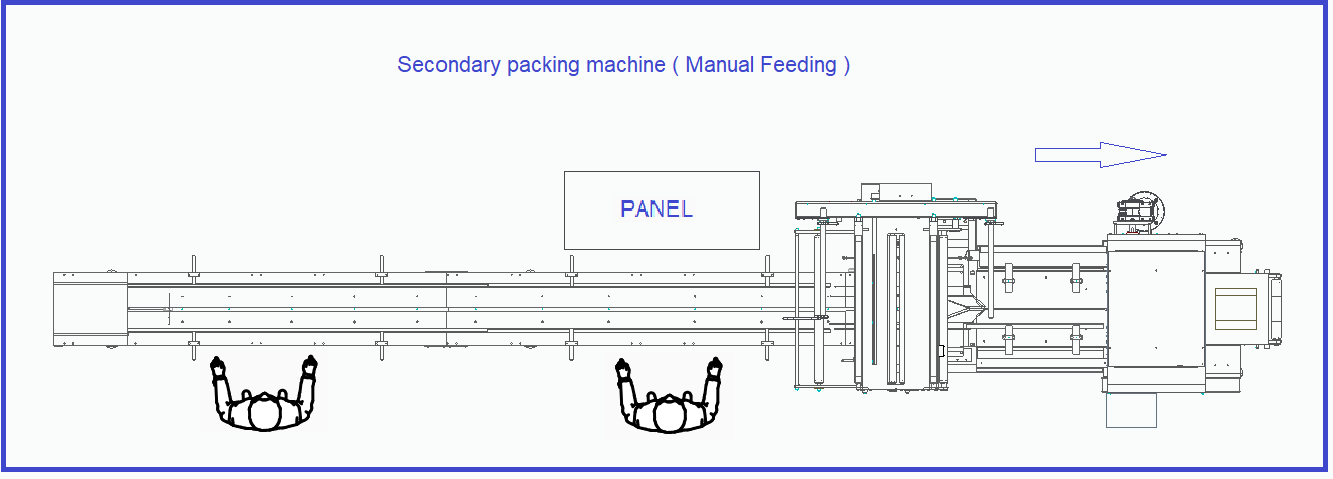

End Line Solution
STANDARD FEATURES
- Machine construction with Side driven mechanism to ensure hygiene and maintenance free approach.
- Wrapper material : most common Heat Sealable wrapper
- One pair of Pulling rollers and two pairs of sealing rollers provided.
- Ergonomic Twin reel holders
- Sealing jaws with horizontal serration
- Servo driven machine.
- Repeat length adjustment thru HMI.
- Conventional type slip rings.
- All parts coming in contact with the product are Stainless steel 304 or food grade plastic.
- All guard & covers of Mild steel, transparent covers are made of Polycarbonate of 6mm thickness.
- Powder coated based Colour shade RAL 1013.
- Frequently opening guards are provided with interlocking arrangement.
- Motion control with PLC.
- 5.7" touch screen HMI with working programs memorization
- Machine diagnostic.
- Temperature control through TC
- Power 5 KW ( depending on model)
OPTIONAL FEATURES
- Left to Right / Right to Left Machine Orientation
- Continues 'V' notch cutter / Plain cutter / Single V notch cutter
- Twin Sealing Jaws.
- Electronic Dwell
- Packing with cold seal wrapper

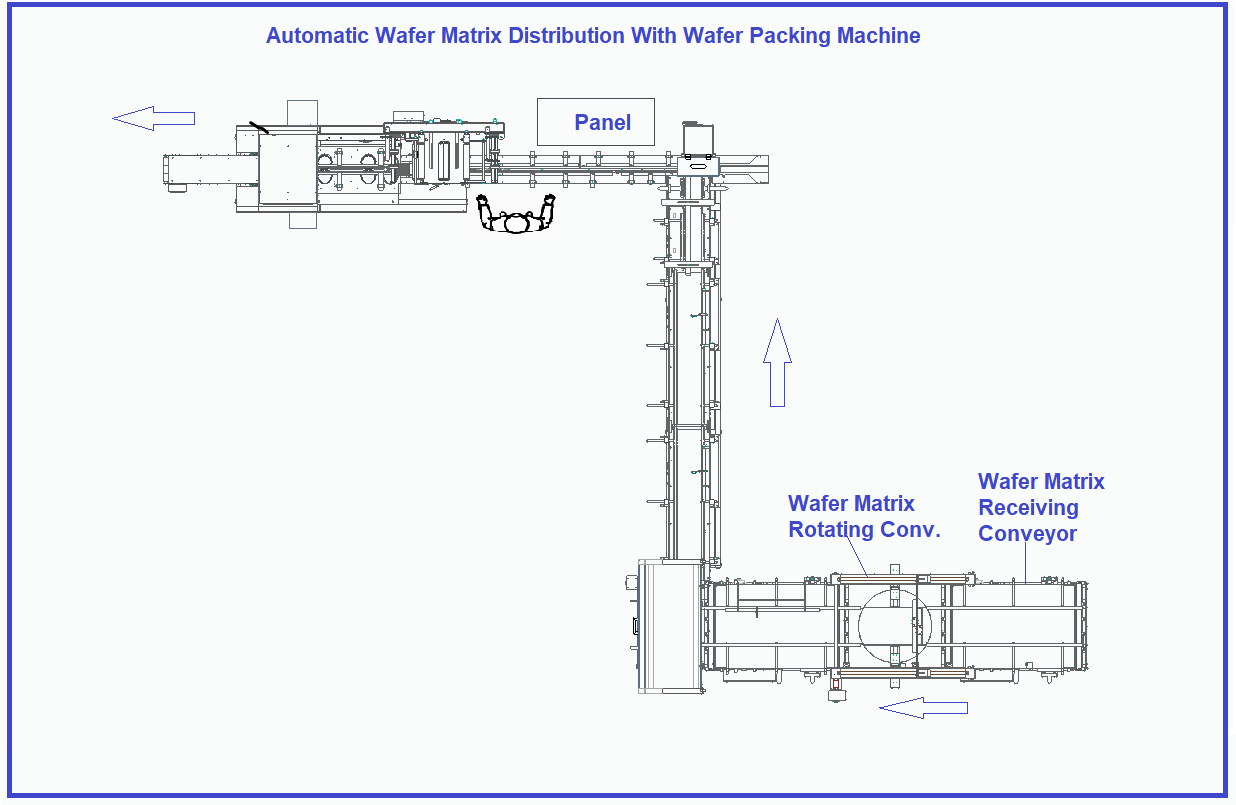

- Matrix rotary table available
- Automatic Wrapper Roll Splicing Unit.
- Auto sealing roller open/close
- Mechanical / Pneumatic gusseting arrangement.
- Supervision system to detect laminate breakage while machine running.
- Less product detection and rejection system.
- Empty, Joint and Spliced pack rejection
- Heater failure indication
- Independent temperature control
- 10" touch screen HMI.
- Remote process diagnostics.
- Stainless steel 304 make guards
- Facility to mount Date coder unit
- Imported sealing jaws
- Enclosed Type Slip rings.
- Electrical panel with Multi-pin type connector
- PLC with IoT SCADA
TECHNICAL DETAILS
| Product Length | 30mm - 70mm |
| Product Width | 30mm - 70mm |
| Product Height | 5mm - 50mm |
| Cut off length | 70mm - 250mm |
| Inside core diameter of laminate roll | 76 mm |
| Maximum outside diameter of laminate roll | 300mm |
| Maximum weight of laminate roll | 20 Kgs |
| Maximum width of laminate roll | 280 mm |
| Machine height at Infeed side and discharge conveyor end | 820 ±50mm |
| Power Supply | 380/415 Volts, 50/60Hz |
| Approximate machine size | 5.5m length x 2.0m width x 2.0 m height |
| Approximate machine weight | 1500 Kgs |
